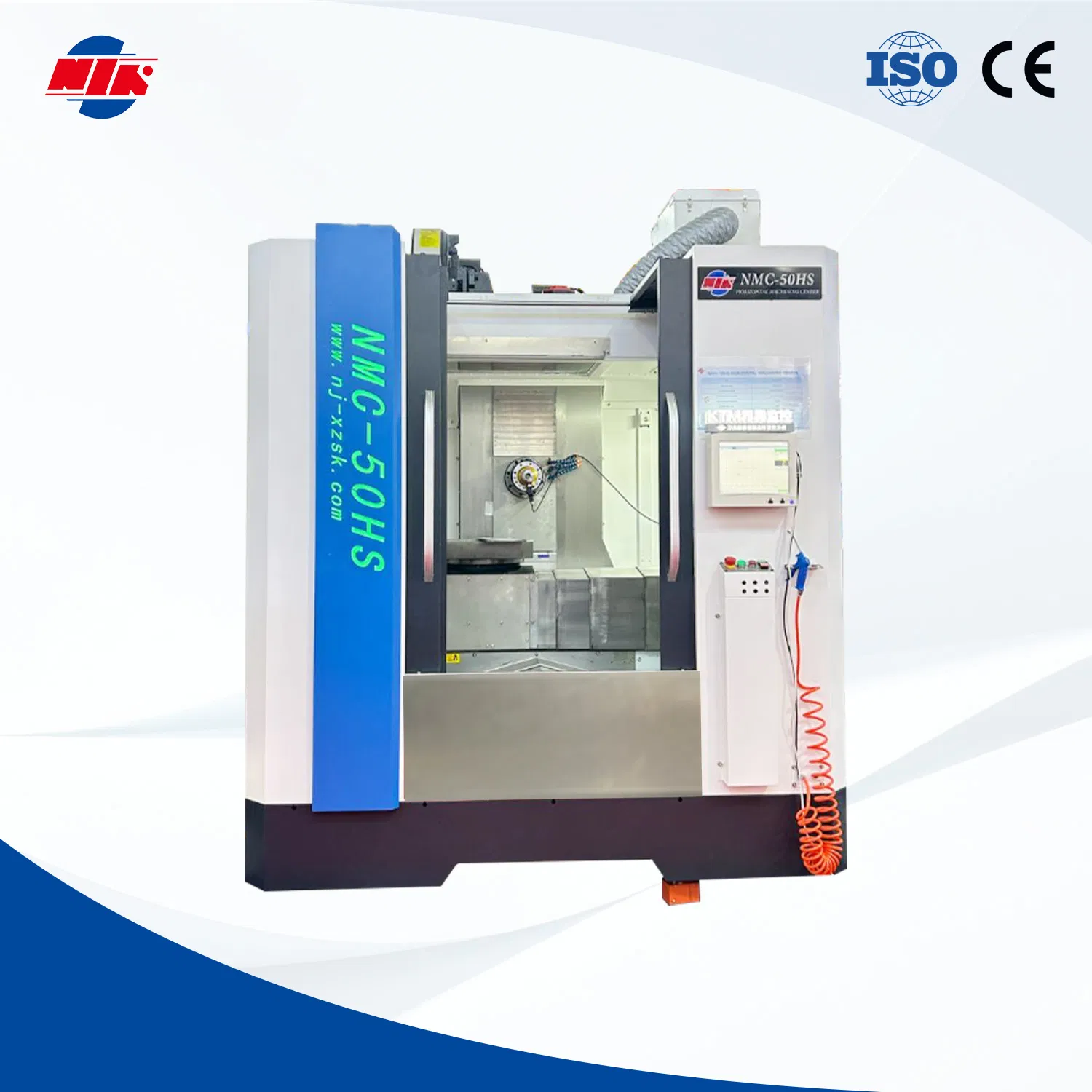

NMC-50HS

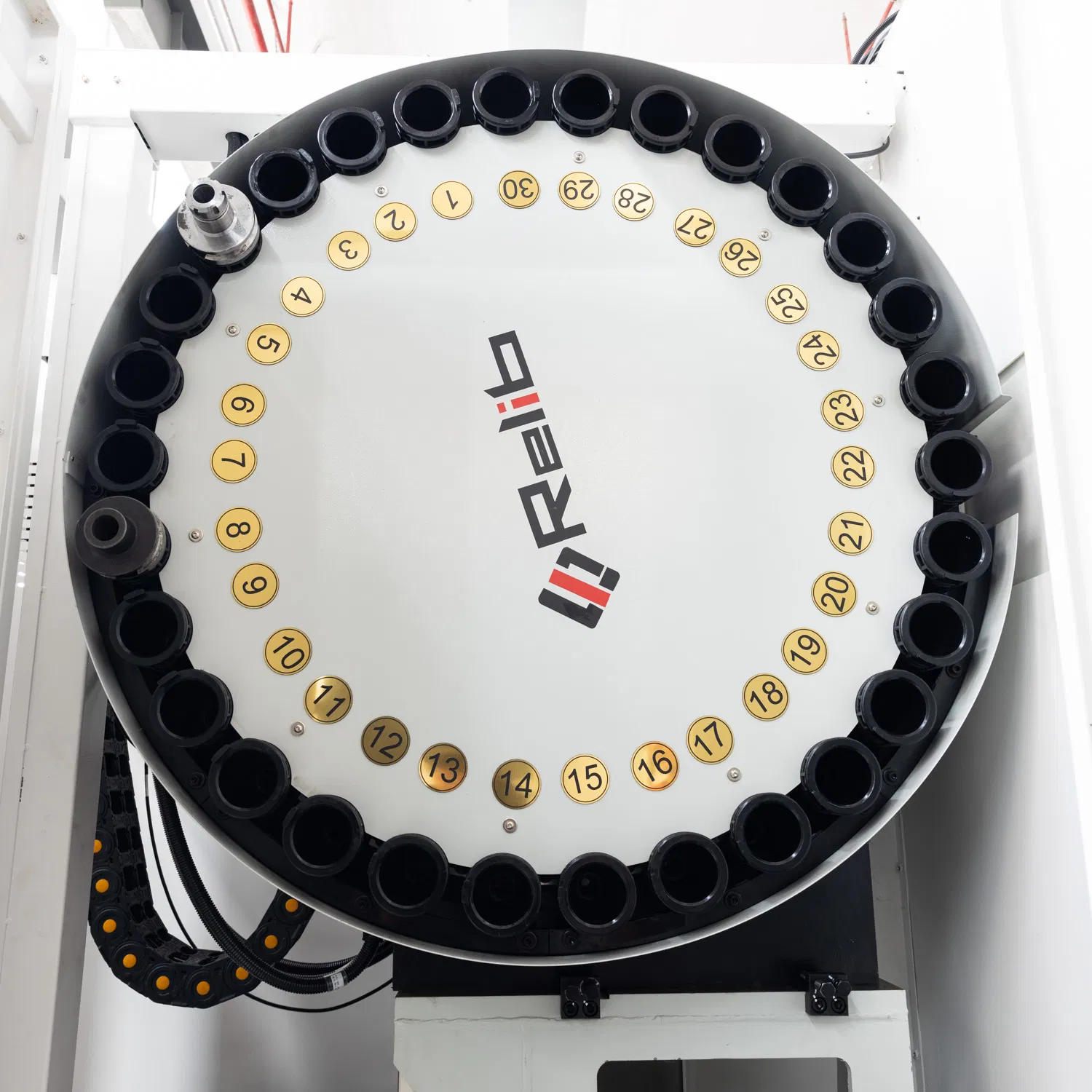

1. It adopts the internationally popular inverted T-shaped moving column overall bed structure, which has the advantages of high rigidity, good stability, and easy protection. 2. The main castings are made of high-grade high-quality cast iron, resin sand molding, and secondaSpecification 3. Fully enclosed protection design, double-sided spiral chip removal structure, equipped with large-capacity cutting fluid tank and convenient machine cleaning air gun, optional chain plate type chip removal lifting device and chip storage car. 4. The standard BT40 ring spray spindle is equipped with an air curtain protection device to completely avoid the penetration of cutting fluid and dust; the spindle sleeve is cooled by circulating oil to ensure the accuracy of the spindle and prolong its service life. 5. Fast and reliable cam manipulator tool changing mechanism, with 24 standard configurations, and 32, 40 chain tool magazines can be selected, and the tool discs adopt the two-way nearest tool selection method, which is fast, stable and reliable. 6. The oil-water separation structure design of the machine tool is equipped with a centralized lubricating oil recovery system, saving energy. About oil, protect the environment. 7. The three-axis ball screw is pre-stretched with double supports to optimize the transmission rigidity and reduce thermal deformation. 8. Adopt FANUC's latest wide-area high-torque spindle servo motor, cooperate with high-torque synchronous toothed belt drive (direct connection structure between motor and spindle can be selected), and various spindle configurations (belt drive, direct-coupled spindle, ZF gearbox) schemes Available options to meet the processing requirements of different materials. 9. The three-axis feed drive adopts imported heavy-duty roller linear guides, and the preload is V3 level, with high load capacity and stable precision. System FANUC 0i-MF Plus Item NMC50HS Single table NMC50HS/1 APC Table specification (width×length) mm 500x500 2-500x500 Table type (number of slots - slot width × spacing) mm STD: 5-18×80; OPT:24xM14 Maximum table load kg 500 Maximum rotary diameter of workpiece mm Φ700 Table indexing number deg STD: 1°×360 indexing rotary table OPT: 0.001° CNC rotary table Distance from spindle centre to table surface mm 100~680 0-580 Distance from spindle front face to worktable center mm 115~715 X/Y/Z coordinate travel mm 660/580/600 X/Y/Z guideway form Heavy Duty Linear Rolling Guideway X/Y/Z rapid traverse speed m/min 40/40/40 Cutting feed speed m/min 0.005~6 X/Y/Z/turntable axis servo motor torque Nm 20/27/20/7 Power kW 3.0/3.0/3.0/1.2 Spindle motor power kW 11/9 (S2-15min/S1) Spindle speed range r/min 40~8000 Spindle output torque Nm 140/86(S1/S2-15min) Tool magazine capacity/form T STD: 24 OPT: 32 Tool shank type BT40 Maximum tool weight kg 8 Max. tool diameter/length mm Ø80(adjacent120)/300 Tool change time (tool to tool) / tool change method Sec 2.5 CNC system display ″ 10.4″ colour LCD with graphic display Air source pressure MPa. 0.5 ~0.7 (Flow rate: 800L/min) Power Requirement kVA 25(three-phase AC 380V ± 10%, 50Hz ± 1Hz) Overall dimensions (L×W×H) mm 3300x2250x2620 4300×2250×2620 Machine weight kg 7500 8500
