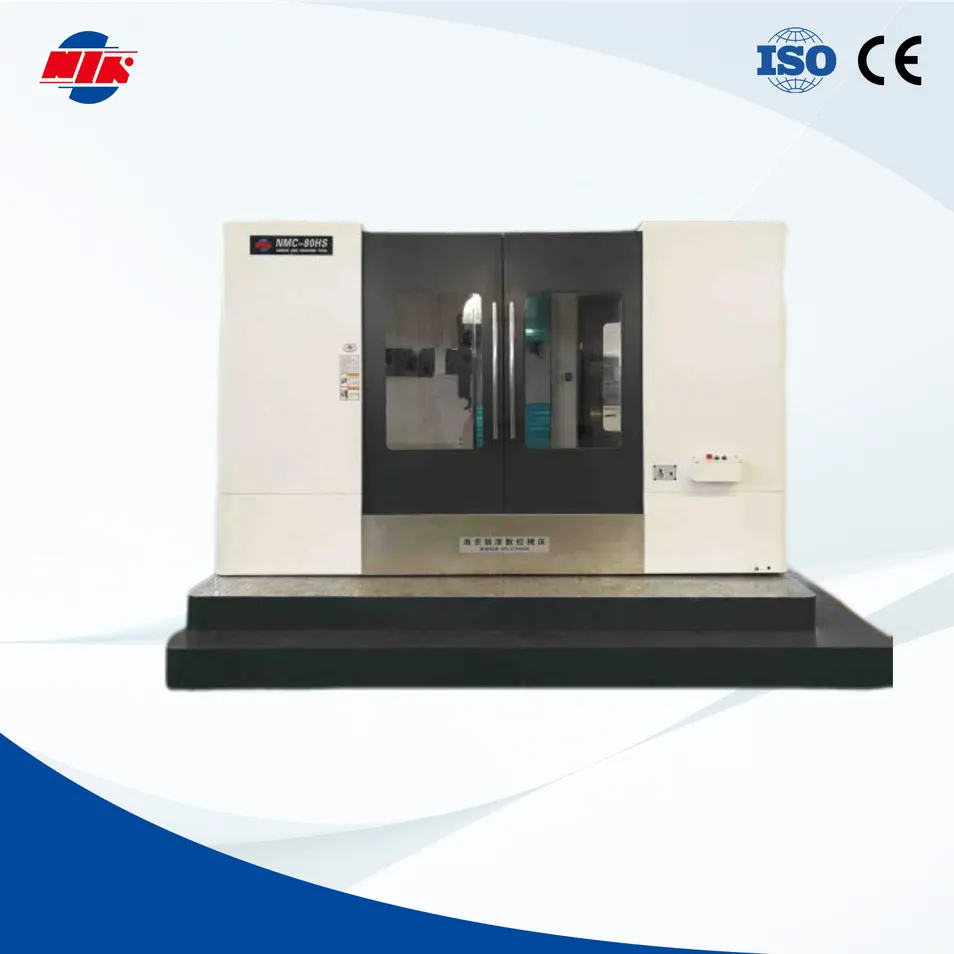

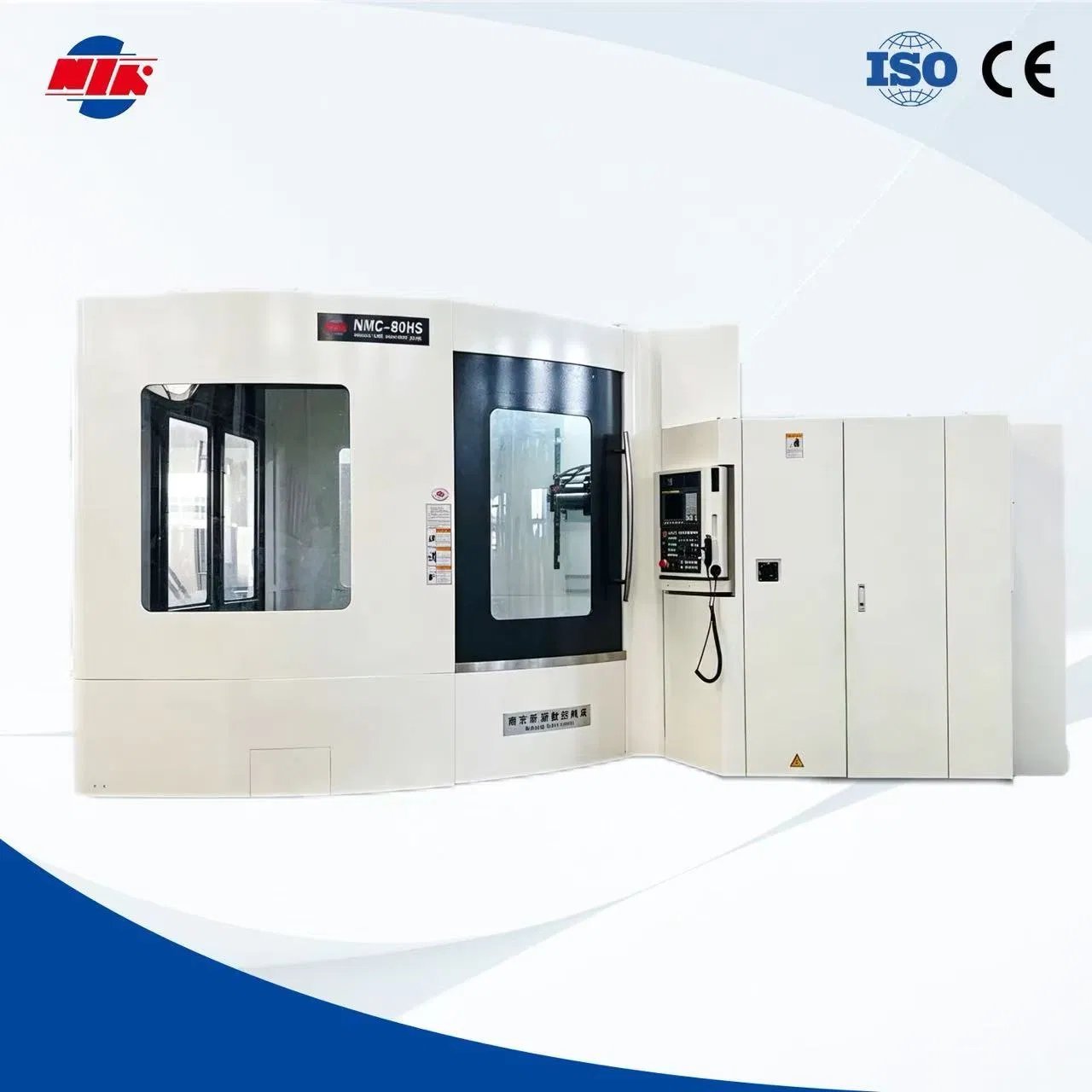

SUFENG CNC南京速锋数控NMC-80HS
High Rigidity Nmc-80HS Hmc Inverted T-Type Industrial Machine
Product Details
| Customization | Available |
|---|---|
| After-sales Service | Online and Engineers Available to Service |
| Warranty | 1 Year |
Shipping
Shipping Cost: Contact the supplier about freight and estimated delivery time.
Basic Info.
- Model NO.
- NMC-80HS
- Application
- Metal
- Process Usage
- Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools
- Movement Method
- Linear Control
- Control Method
- Closed-Loop Control
- Numerical Control
- CNC/MNC
- Processing Precision
- 0.01~0.02(mm)
- Performance Classification
- High-End CNC Machine Tools
- Certification
- GS, CE, RoHS, ISO 9001
- Condition
- New
Applications and machining guidance

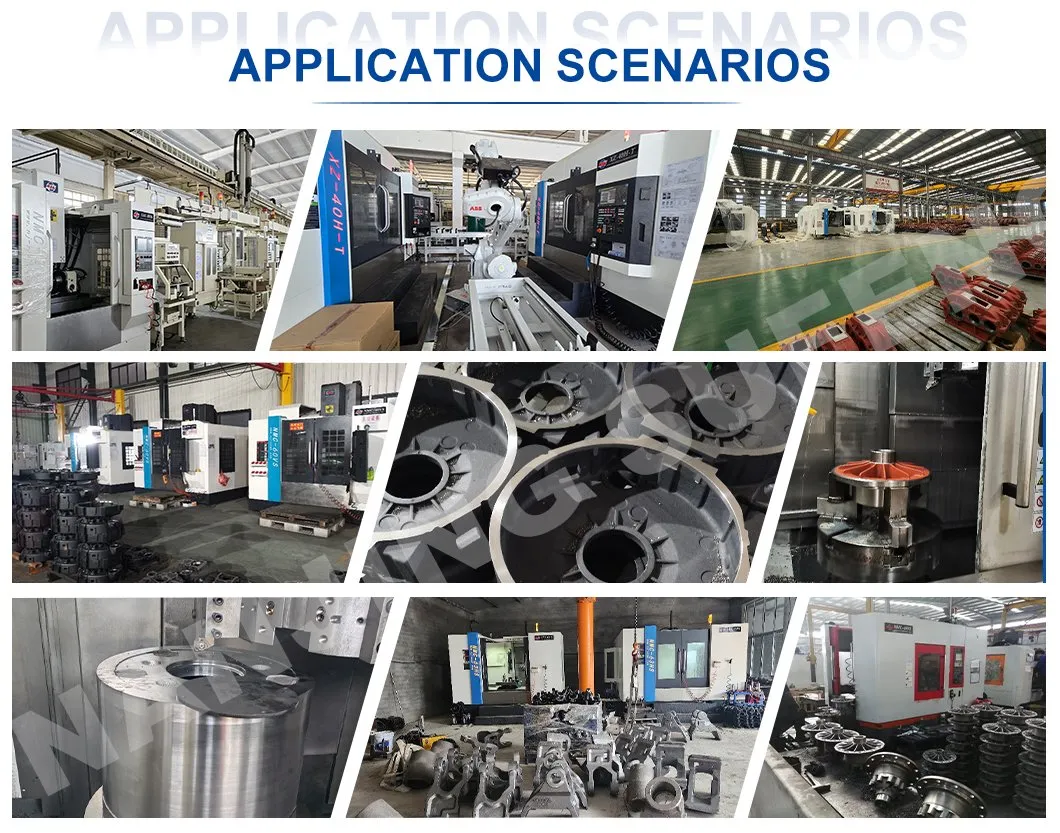

NMC-80HS — Designed for multi-face machining of box parts, housings, valve bodies, automotive components and new-energy parts. The horizontal layout supports fewer setups; spindle, magazine, table and accuracy options should be confirmed against the workpiece drawing.
Complete product details

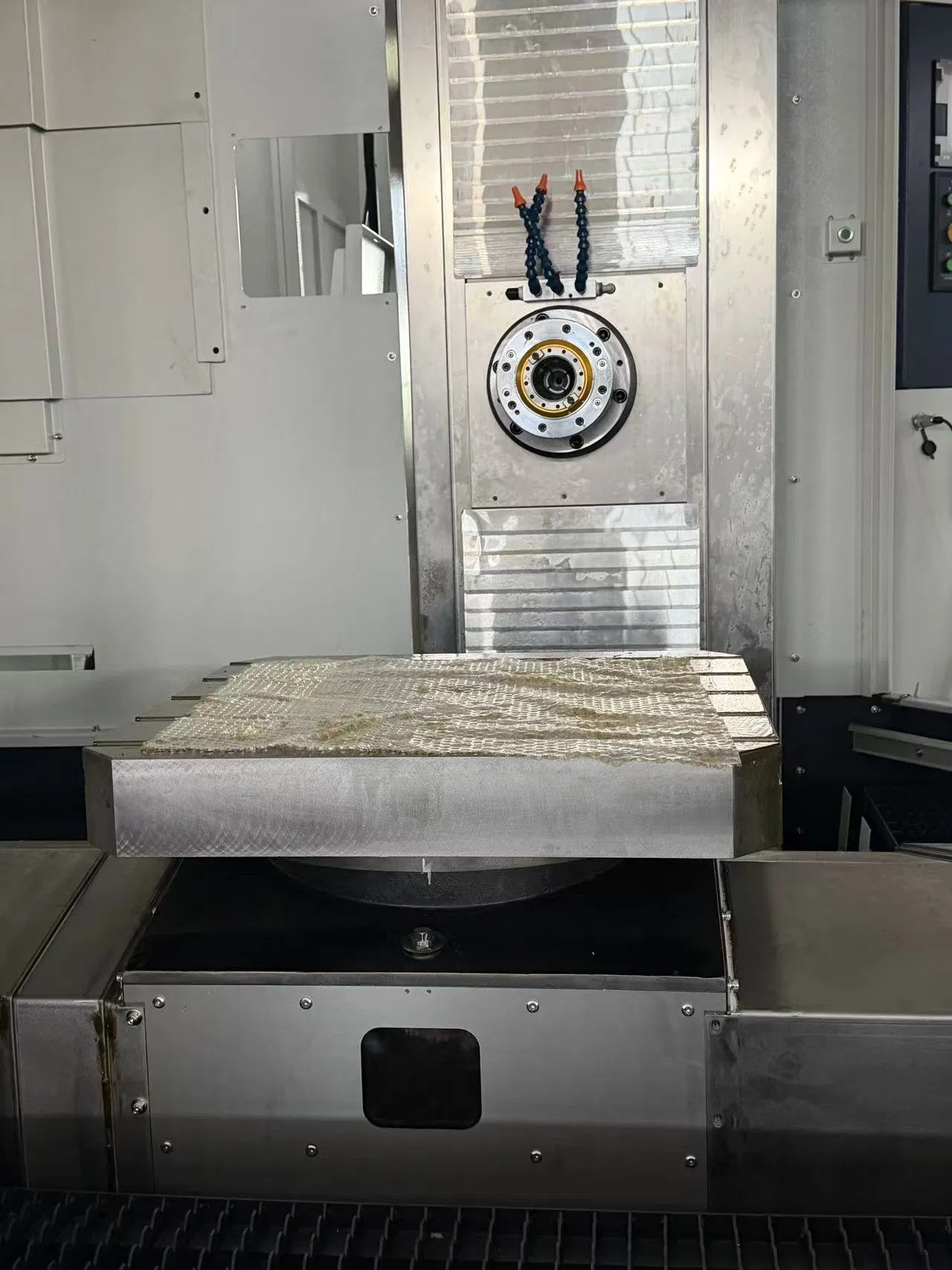

The main shafts all adopt wide-area high-torque spindle motors with outstanding advantages such as wide constant power range, large output torque, low noise, maintenance-free, high speed, and low failure rate. Cooperating with the high-rigidity integrated spindle unit, the heavy-duty cutting capability of the machine tool has been greatly improved, and the output torque of the spindle is twice that of ordinary models. The main structure of the machine adopts modularization, a strong and closed box structure design, with good overall rigidity and strong heavy-duty cutting capability X/Y axis heavy-duty roller linear guideway. Specification Unit NMC-80HS Single table NMC-80HS/1 APC Worktable size (W×L) mm 800×800 2-800×800 Table indexing number/pallet exchange time ° STD:1°×360 Indexing turntable, OPT: 0.001° Table form (,No.*screw hole) mm STD:5-22x160, OPT: 24*M16 Max.loading of worktable kg 2000 1500 Max. Workpiece swing diameter on worktable mm Φ1500 Φ1150 APC changing time/method Sec / 35/rotary Distance from spindle center to worktable mm 100~950 0~850 Distance from the spindle front end to worktable center mm 200~1200 X/Y/Zaxis travelling mm 1300/1000/1000 X/Y/Z guideway Heavy Duty Linear Rolling Guide X/Y/Z quickly move speed m/min 20/20/20 Cutting feed speed m/min 0.005~10 Spindle motor power kw 15/18.5 (S1/S3-25%) Spindle output torque Nm 191/315(S1/S3-25%) Spindle speed range r/min 30~6000 Tool magazine capacity/form pcs STD: 32 (disc type), optional 40 (chain type)/ 60 (chain type) Shank form BT50 Max.tool weight kg 18 Max. tool size (diameter/length) mm Φ110(adjacentΦ200)/400 Tool change time (tool to tool) / tool change method Sec 5 / Random CNC system display ″ FANUC 0i-MF plus, 10.4″ LCD/MDI Air pressure MPa. 0.5~0.7 (flow: 500L/min) Electricity demand kva 35(three-phase AC 380V± 10%,50Hz± 1Hz) Machine size (L×W×H) mm 4840*4070*4100 6800x4200x4100 Machine weight kg 16500 18000
Frequently asked questions
How do I confirm whether this machine suits my part?
Send the workpiece drawing, material, dimensions, tolerances, annual volume and target cycle time. Our engineers will check travel, spindle, tool capacity, fixturing and automation needs.
Are customization and OEM/ODM available?
Yes. The available scope can cover process requirements, CNC control, tool magazine, table, fixtures and loading automation.
What delivery and after-sales support is available?
Installation, commissioning, operator training, remote support and spare-parts service are available, subject to the delivery region and project scope.
