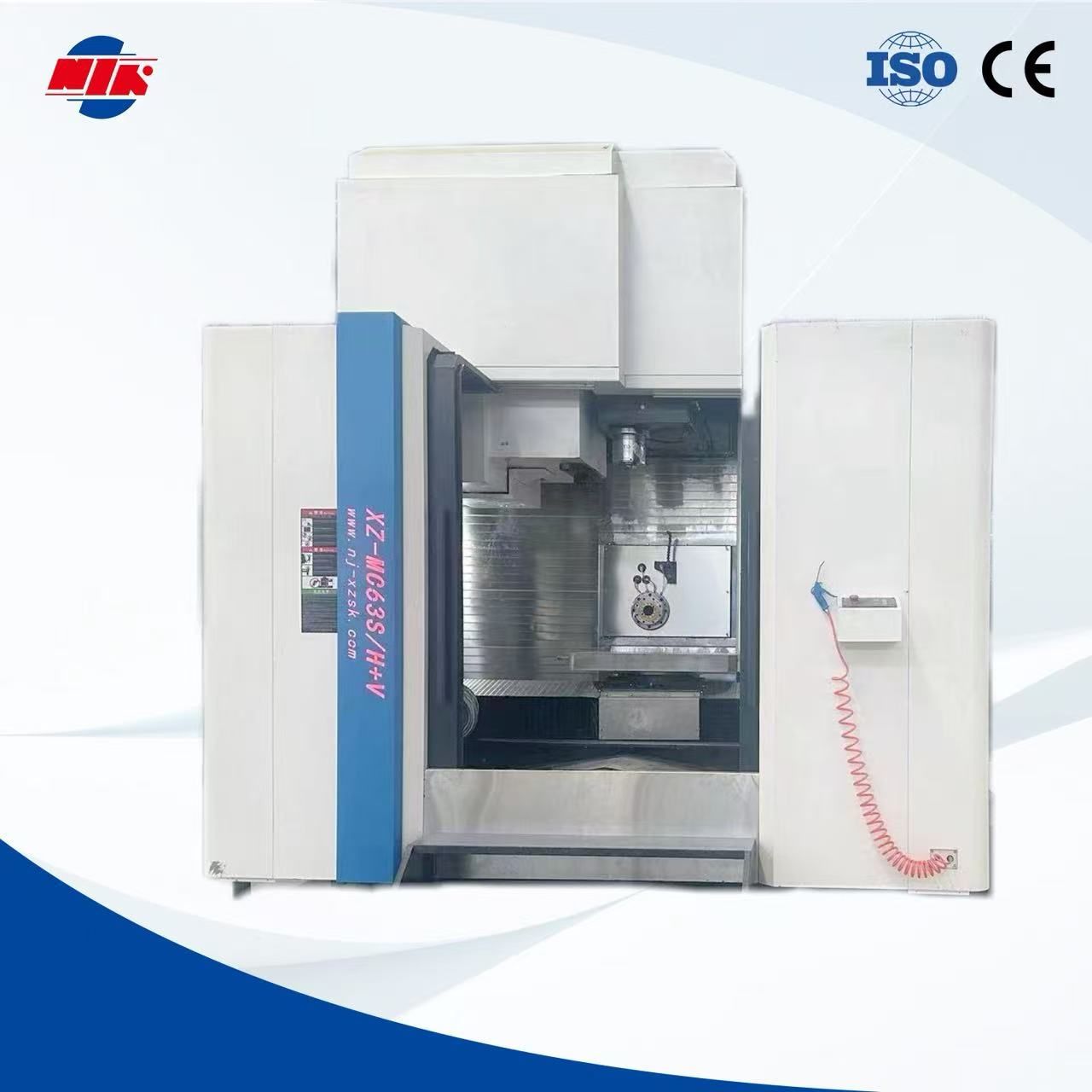

NMH-63SHV

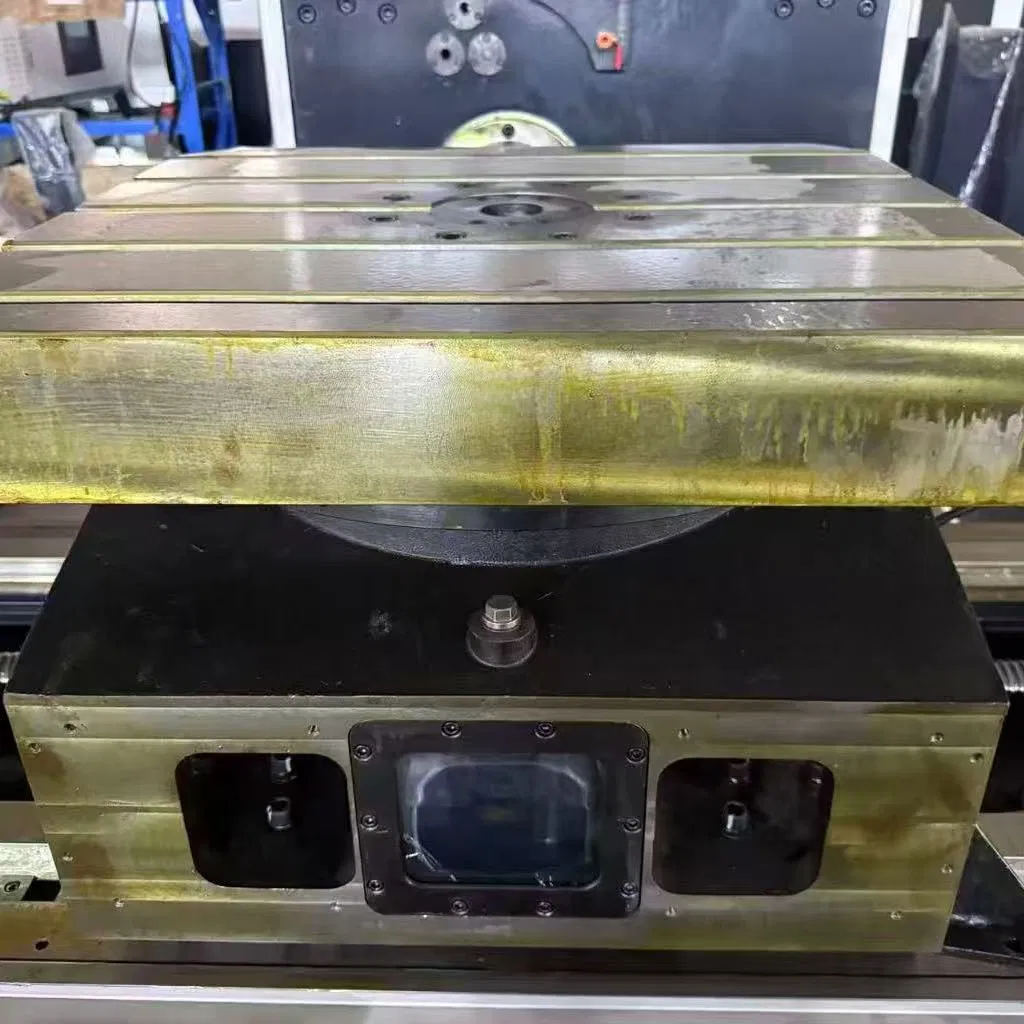

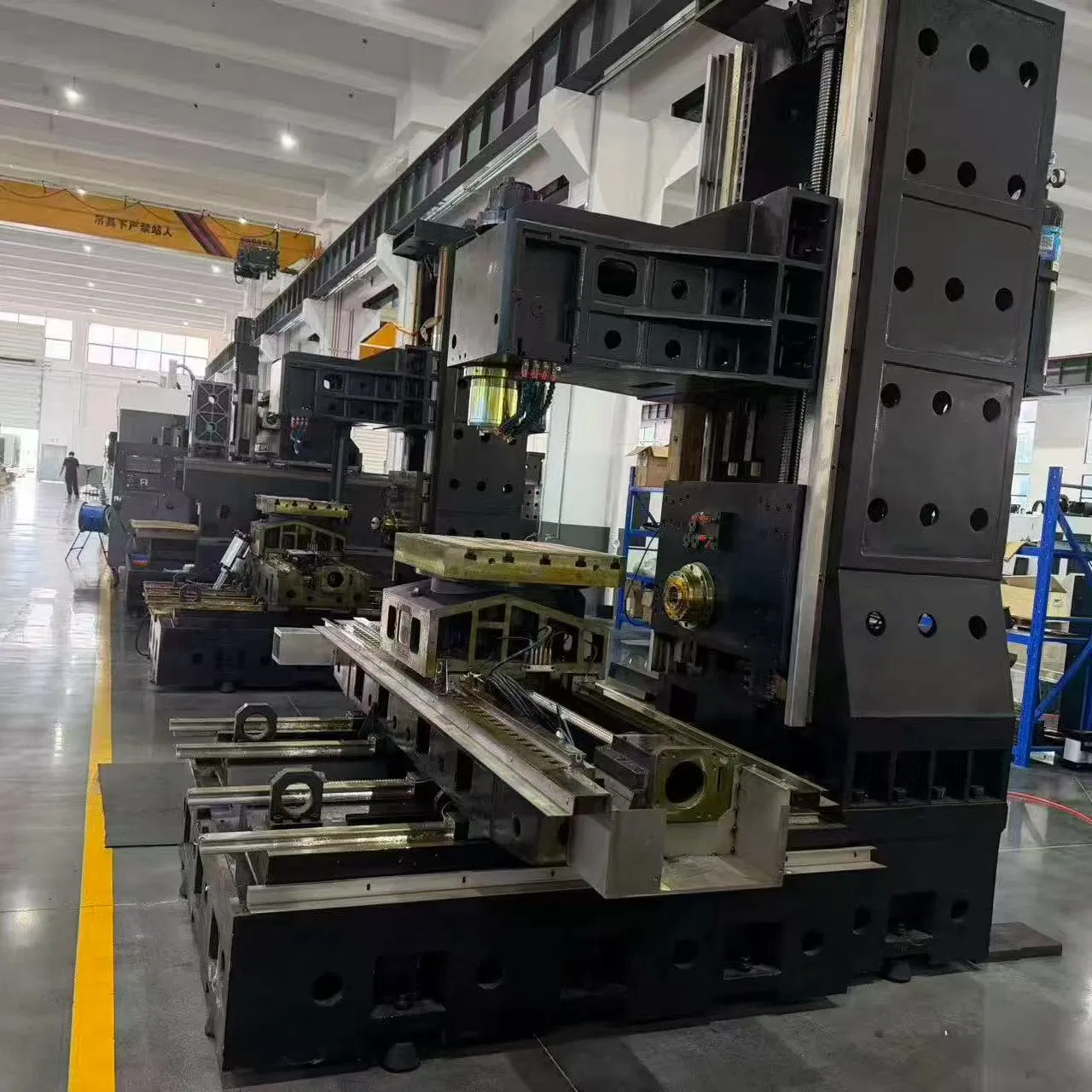

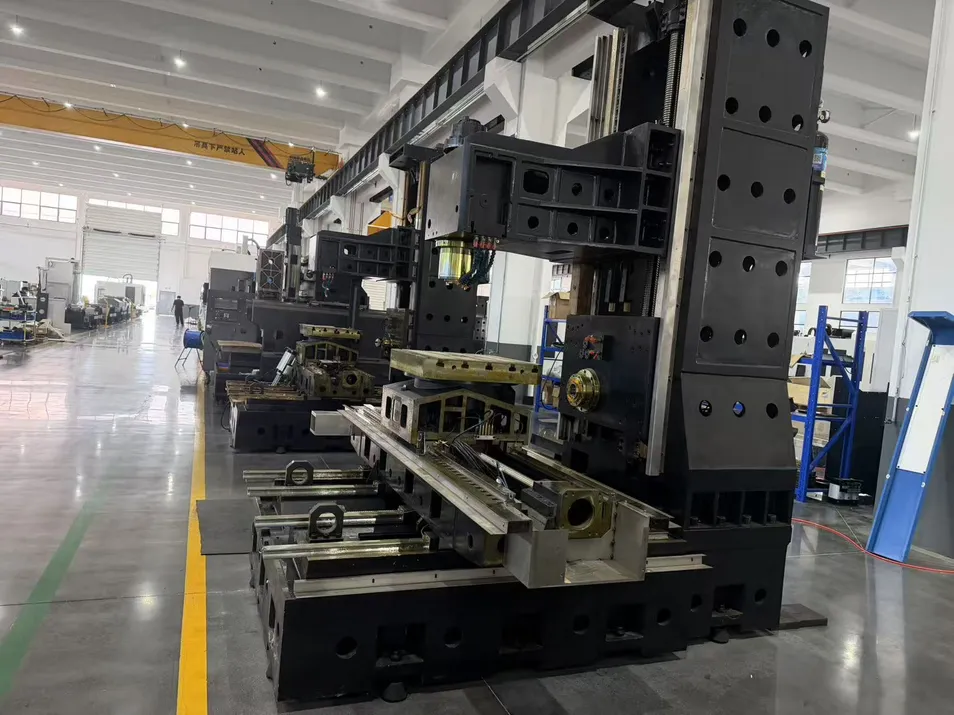

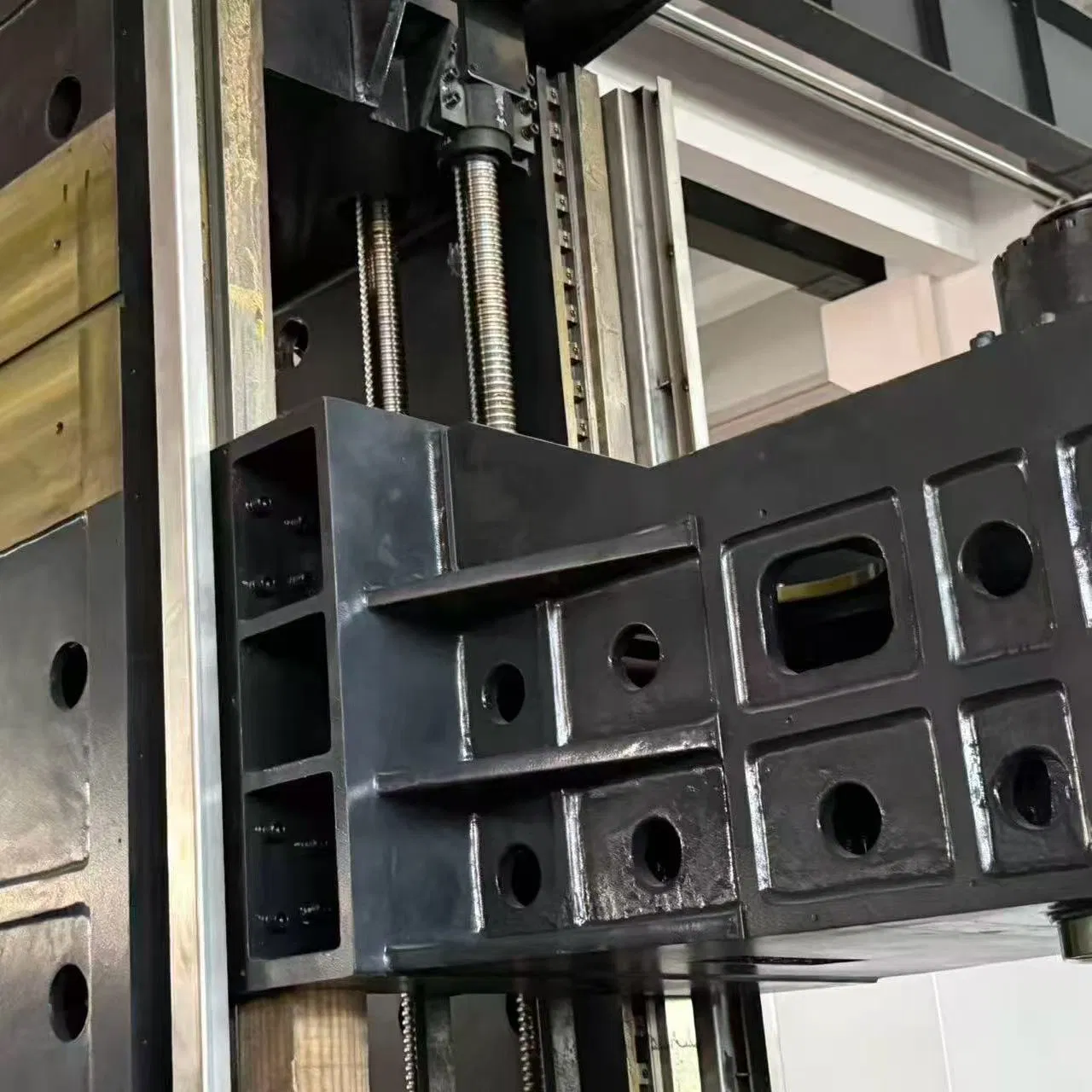

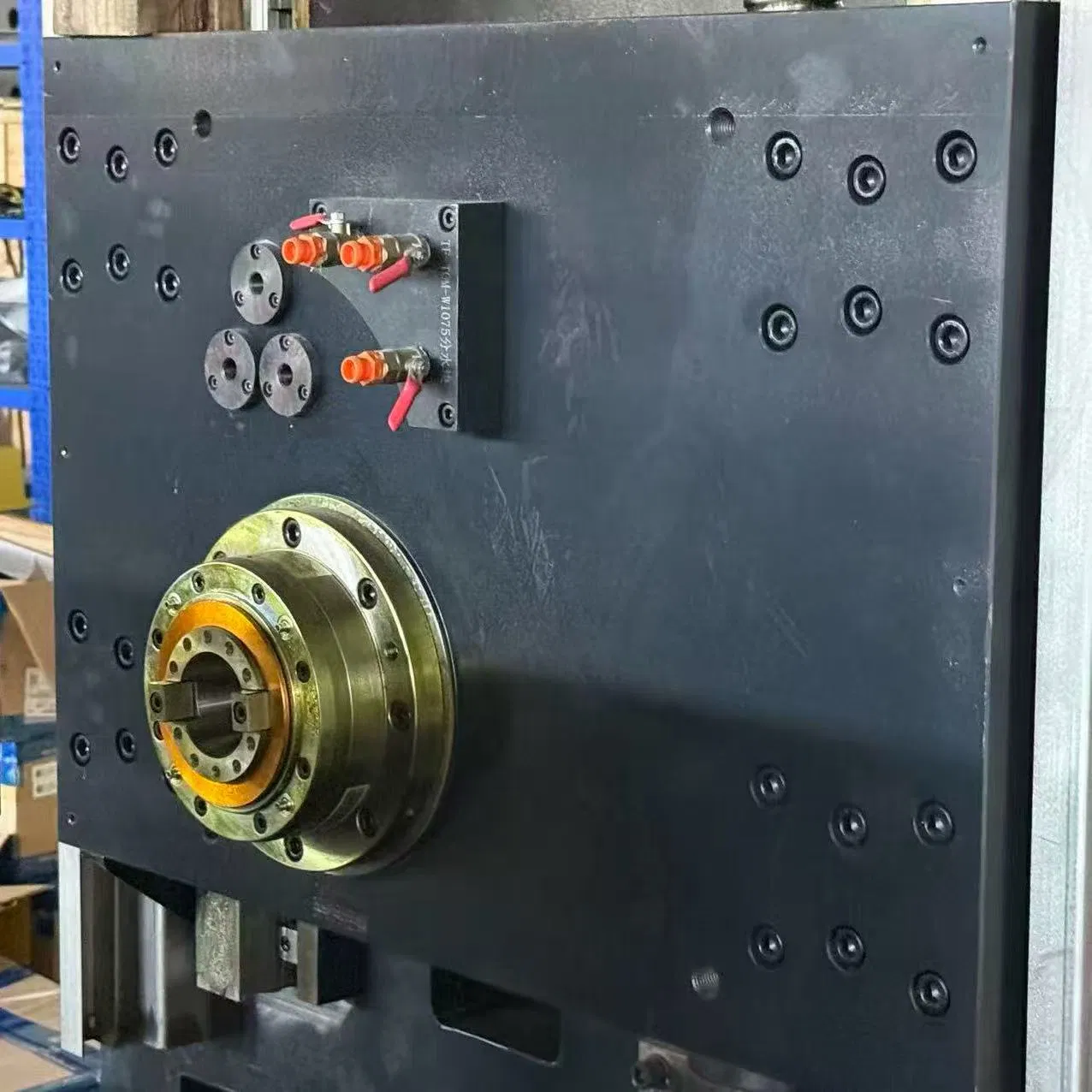

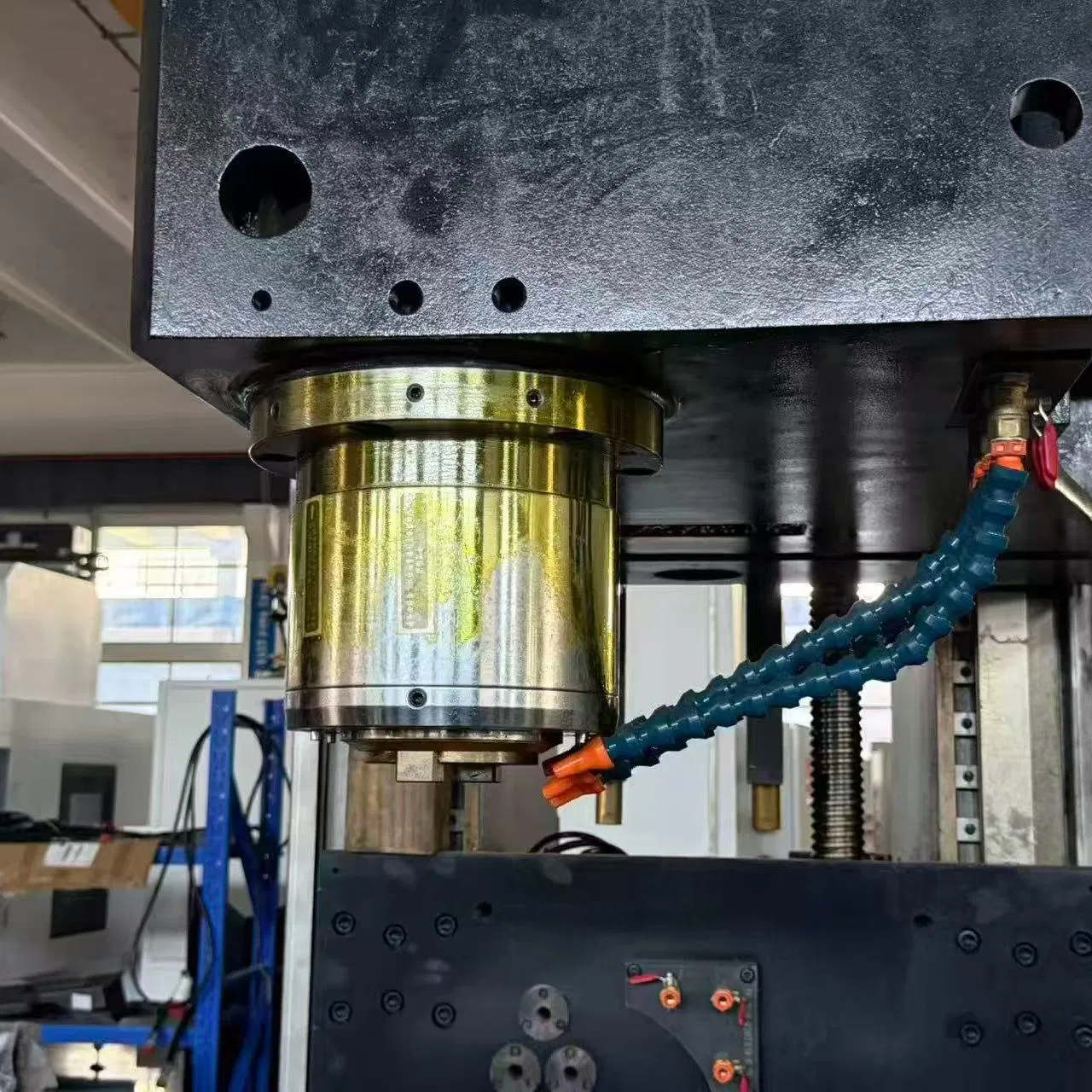

After equipping this machine tool with a vertical-horizontal composite function CNC system, one clamping can complete machining of multiple rotational surfaces and top surfaces of the part. It features multiple machining functions such as boring, turning, milling, drilling, reaming, tapping, etc., making it particularly suitable for one-clamping multi-surface hole systems and planar machining of box-type parts. It is widely used in various mechanical machining fields to maximize the utilization rate of the machine tool. Project Name Unit NMH-80HV NMH-63SHV NC Rotary Table (B Axis) mm 800×800 630*1000 Indexing Mode of NC Rotary Table 0.001° Interpolation Linkage NC Rotary Table 1° divided equally by 360 Maximum workpiece weight capacity of CNC indexing tables KG 1000 1000 The maximum workpiece rotation diameter allowed by the CNC indexing table MM Φ1400 Φ1400 Maximum rotational speed of CNC indexing table r/min 3 3 Workbench T-slots (Number - Width × Spacing) 5-22×125 5-18*125 Turntable indexing positioning accuracy / repeatability positioning accuracy " 8/4 8/4 is travel (left-right movement of the worktable) MM 1450 1300 is travel (table movement forward and backward) MM 800 600 Y-axis travel (up and down movement of the horizontal spindle) MM 850 600 V-axis travel (vertical spindle up and down movement) MM 850 700 Distance from the nose end of the horizontal spindle to the rotating center of the worktable MM 300-1100 415-1015 Spindle taper hole (same for horizontal and vertical spindles) NO.50(7:24) NO.50(7:24) Spindle Servo Motor Power (Same for Horizontal and Vertical Spindles) KW 15/18.5 15/18.5 Spindle Output Torque (Same for Horizontal and Vertical Spindles) NW 143/236 143/191 Maximum spindle speed RPM 6000 6000 Fast movement speed of linear coordinates (X/Y/Z/V) m/min 24/20/24/20 24 Linear Coordinate (X/Y/Z/V) Feed Rate mm/min 5-10000 10-12000 Linear coordinate (X/Y/Z/V) positioning accuracy MM 0.012 0.012 Repeatability of linear coordinate (X/Y/Z/V) positioning MM 0.008 0.005 Guide Pair Forms (X/Y/Z/V) verloaded straight linear guide rail 55/55/35 (four rails)/55 verloaded straight linear guide rail 55/55/35 (four rails)/55 Tool magazine capacity (the tool magazine is the same for horizontal and vertical spindles) 24 24 Tool change mode Random Random Tool change time (tool-to-tool) S 4.8 4.8 Maximum tool weight KG 18 18 Maximum tool diameter MM Φ125 (Full Cut) / φ200 (Adjacent to Air) Φ125 (Full Cut) / φ200 (Adjacent to Air) Maximum Tool Length MM 320 320 Machine Tool Overall Dimensions (L × W × H) MM 5000×3500×4200 5000×3500×4200 Approximate total weight KG 15000 15000
