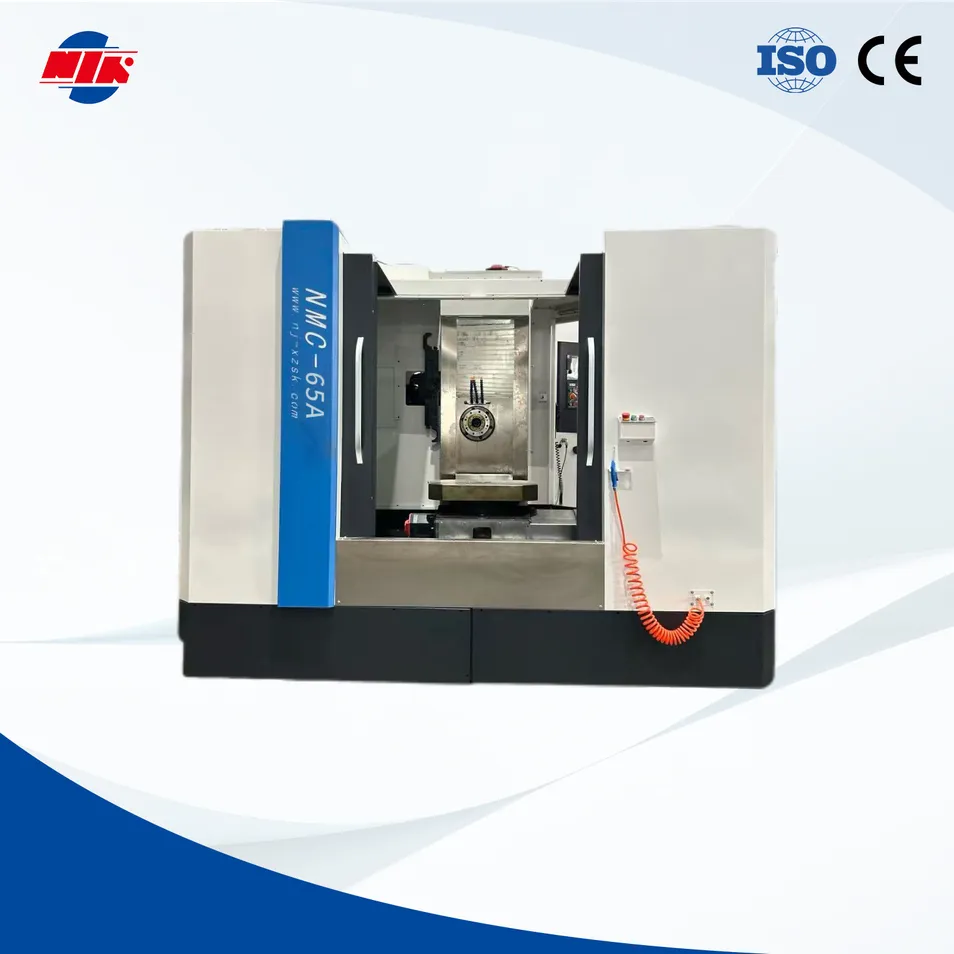

NMC-65A

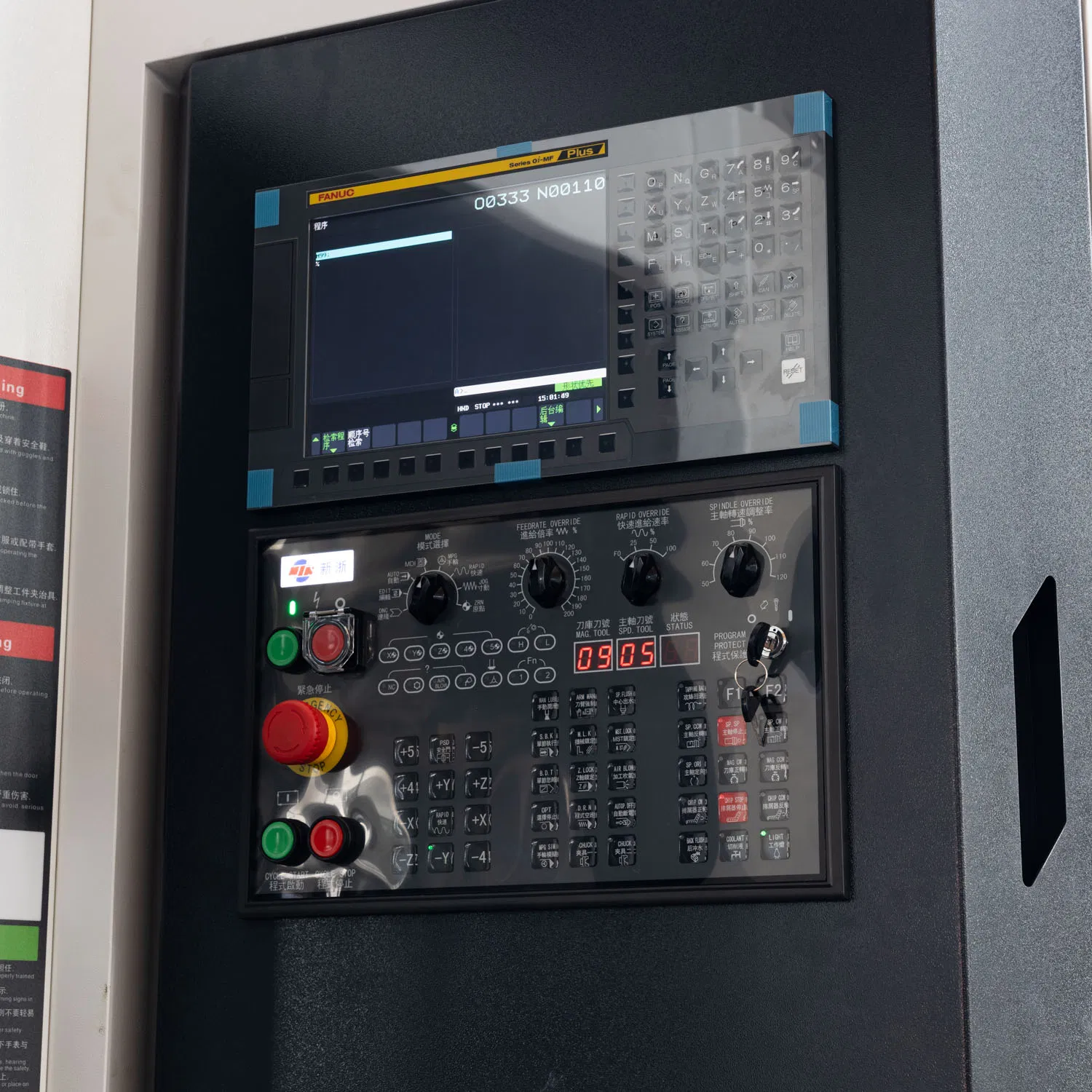

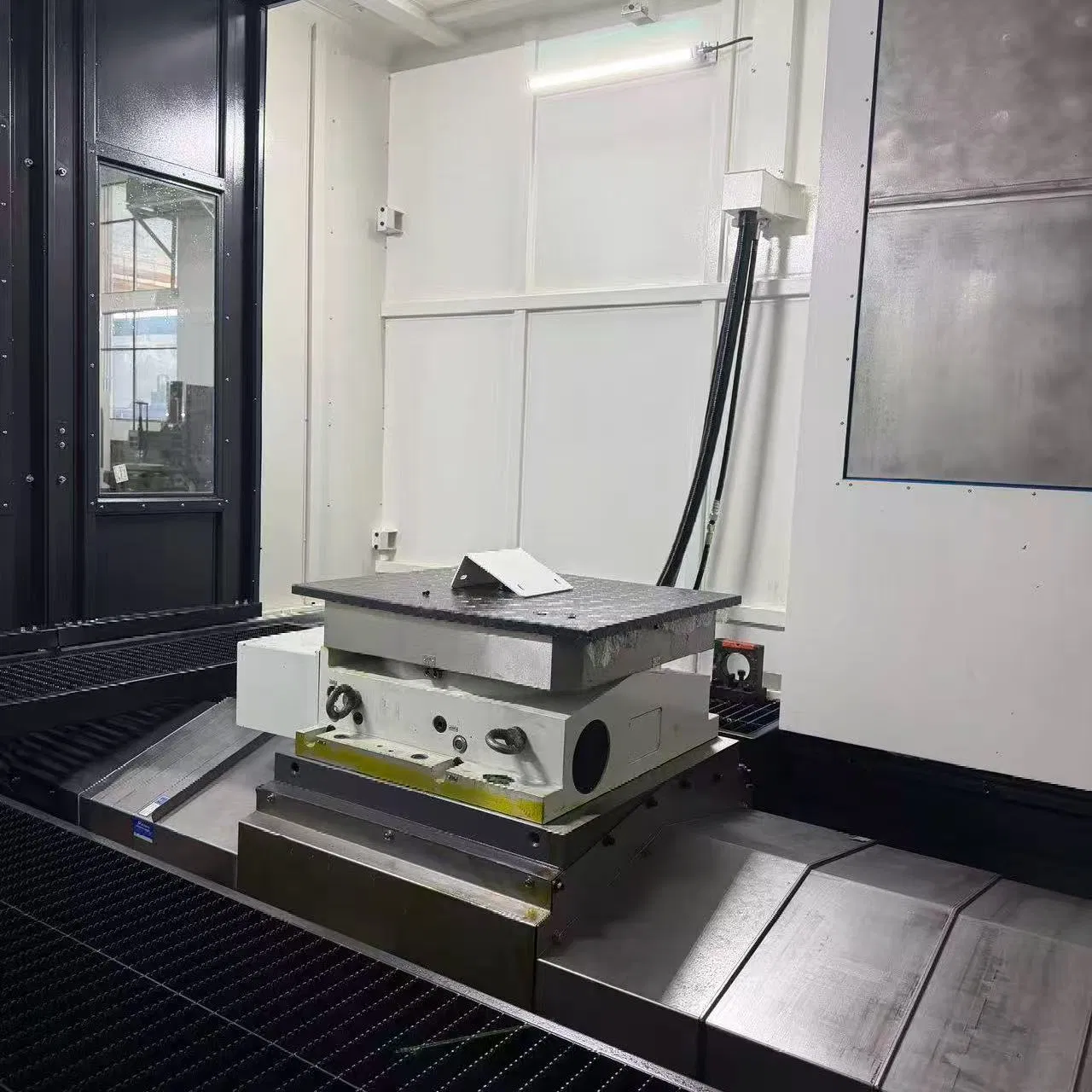

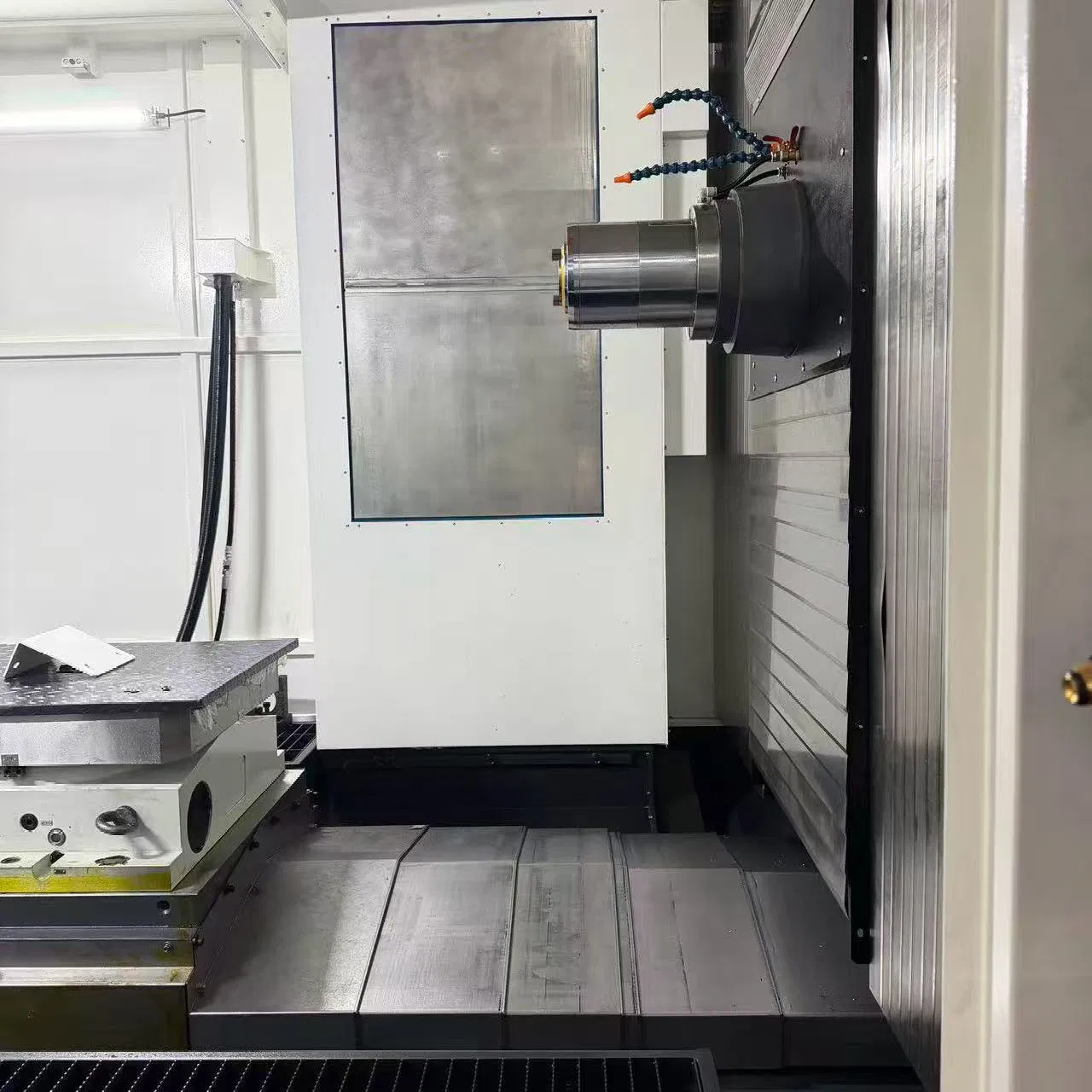

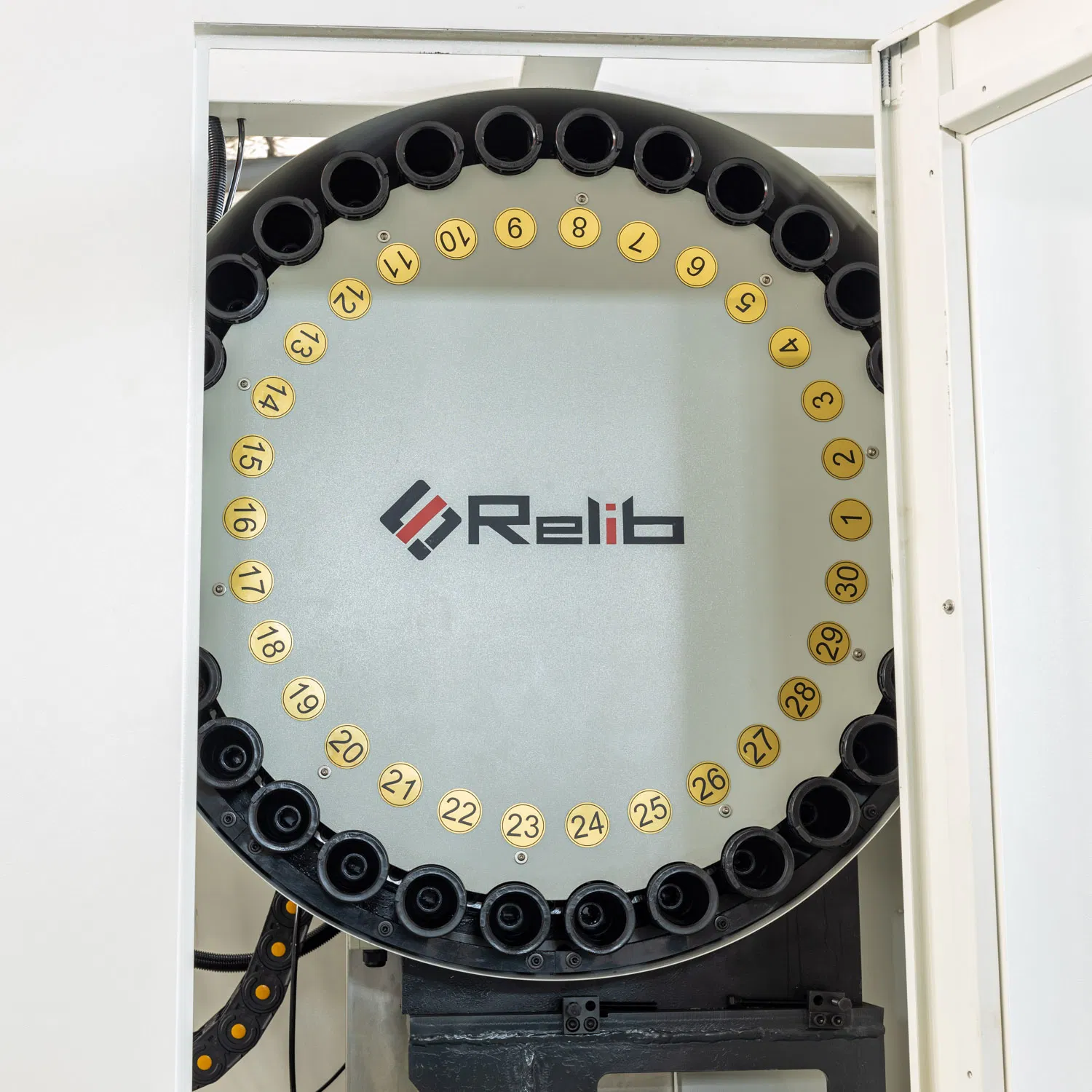

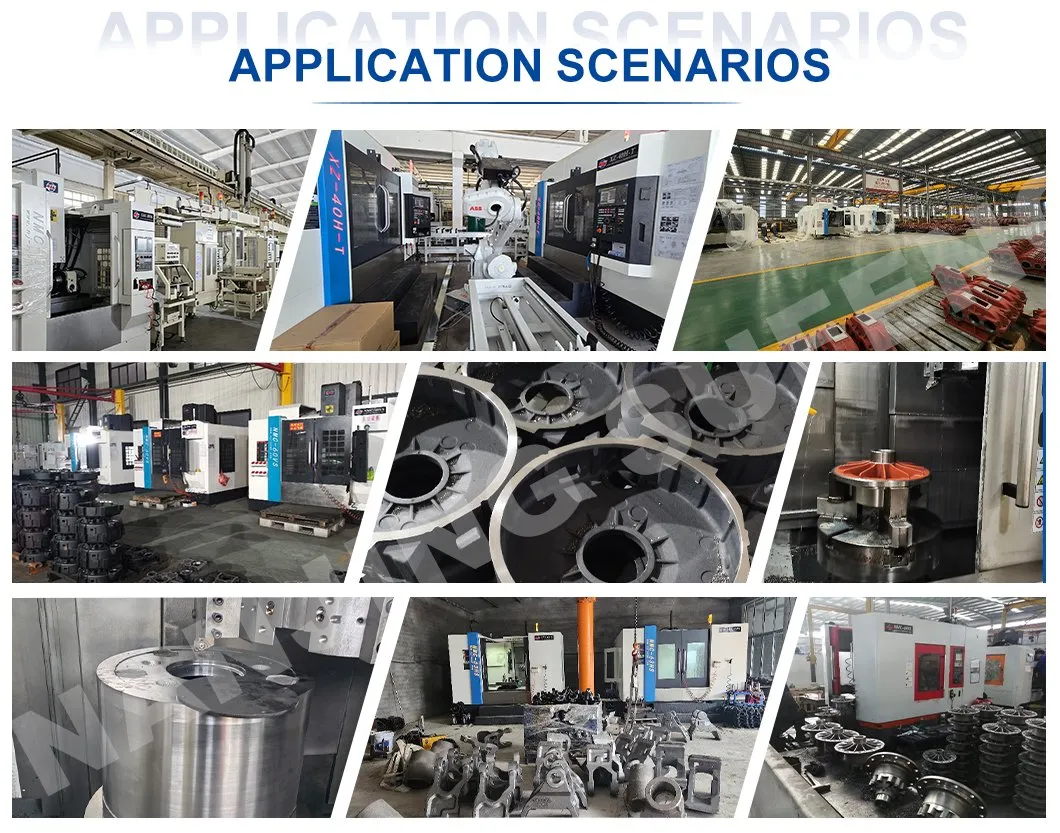

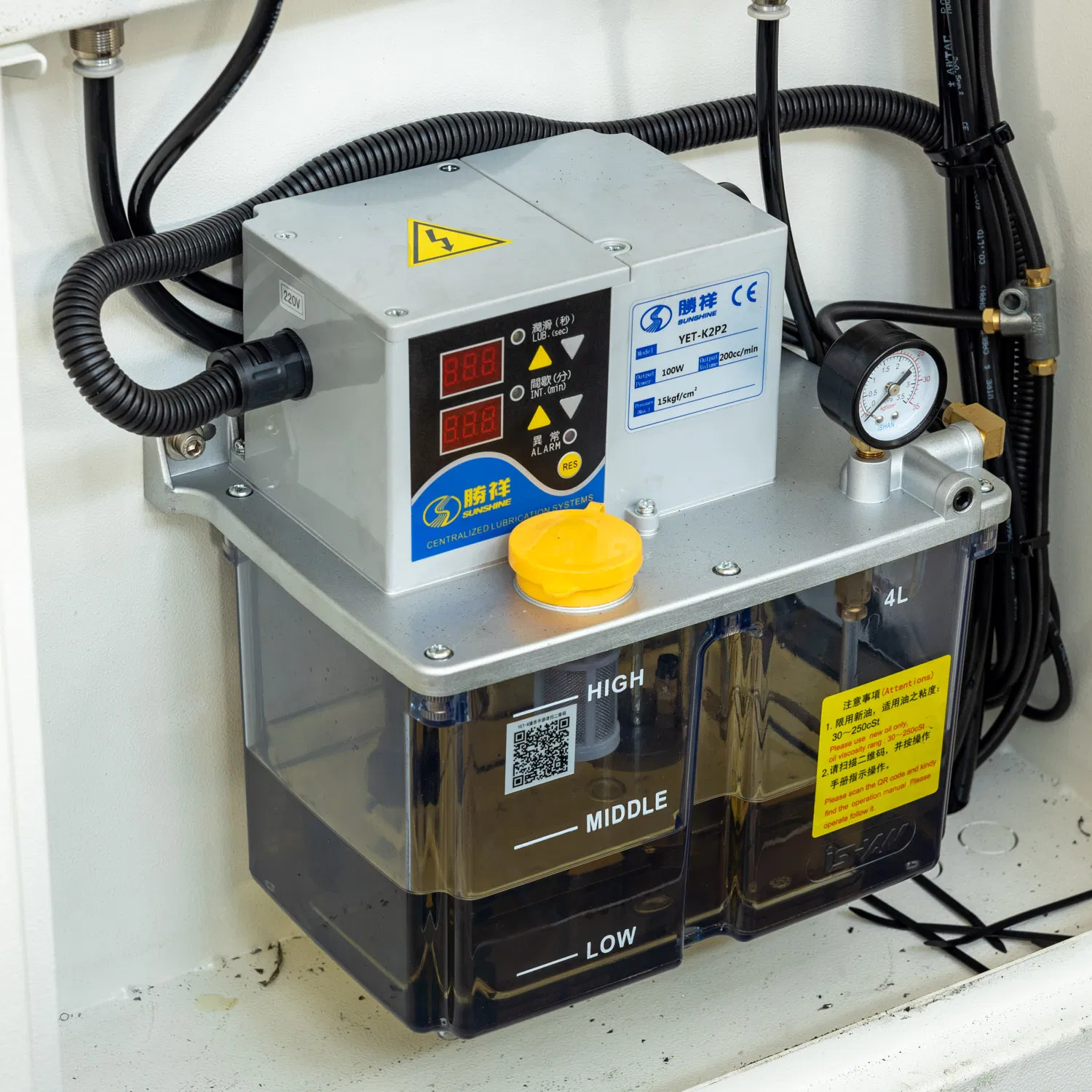

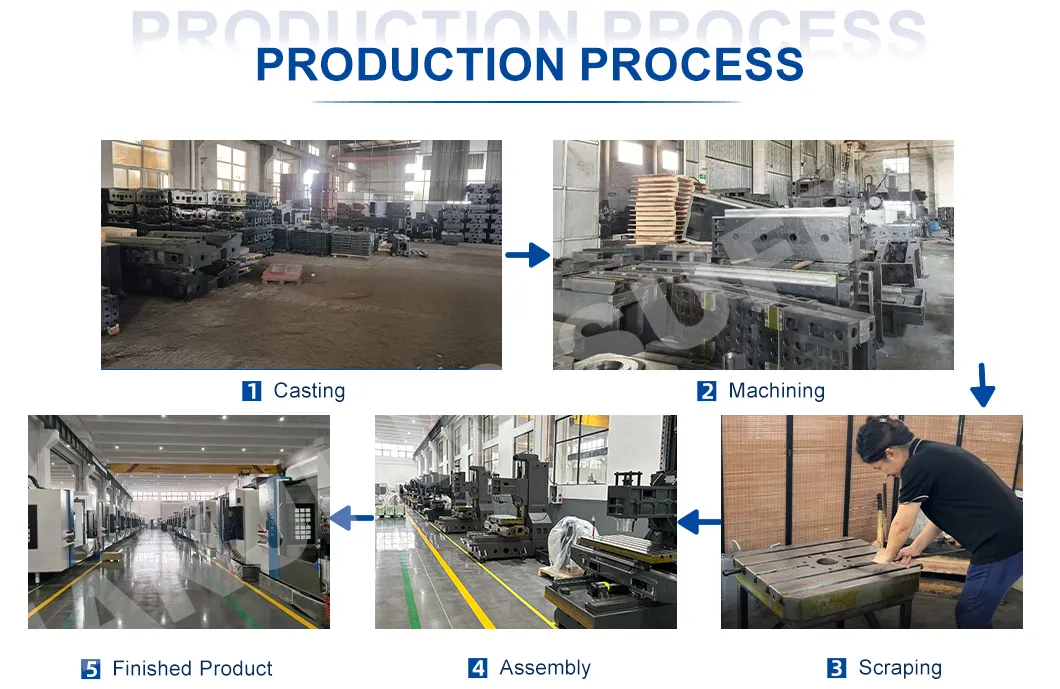

This positive-T horizontal machining center series draws on more than 30 years of design experience and is available in two configurations: NMH-65A single table and NMH-65A/1 automatic pallet changer. Item NMH-65A Single table NMH-65A/1 APC Table size(width × length) mm 650×650 2-650×650 Number of index divisions on the worktable deg STD: 1° × 360 equal divisions; OPT: 0.001° arbitrary (4-axis interpolation) T-Slot(number of slots × slot width × spacing) mm 5-22×122 Maximum worktable load capacity kg 1200 Distance from spindle center to worktable mm 100-850 0-750 Distance from spindle face to worktable center mm 180-1080 Maximum workpiece swing diameter on worktable mm Φ900 X/Y/Z-axis travel mm 950/750/900 X/Y/Z-axis guide type Heavy-duty linear roller guide X/Y/Z-axis rapid traverse speed m/min 36/36/36 Maximum rotary table speed r/min 4–8 (evenly distributed load) Cutting feed rate m/min 0.005-20 Torque and power of the X/Y/Z/rotary table servo motors Nm 30/30/22/8 kW 7.0/7.0/4.0/1.6 BT50 6000rpm Spindle speed range r/min 25–6,000 (2-speed: High/Low) Spindle motor power kW H gear: 15/22 (S1/S3 -25%), L gear: 11/18.5 (S1/S3 -15%) Spindle output torque Nm H gear: 249/365 (S1/S3 -25%), L gear: 263/442 (S1/S3 -15%) Tool magazine capacity/type T STD:32 OPT: 40, 60 Tool holder type BT50 Maximum tool weight kg 20kg Maximum tool dimensions (diameter/length) mm Φ115 (adjacent to Φ200) / 450 Tool change time (tool-to-tool)/tool change method Sec 5/ as supplied CNC System and display of cnc ″ FANUC 0i-MF Plus, 10.4-inch color LCD Air Supply Pressure MPa. 0.5–0.7 (Flow rate: 800 L/min) Power Requirements kVA 35 (Three-phase AC 380 V ±10%, 50 Hz ±1 Hz) Overall Dimensions (L×W×H) mm 4500×3800×3200 6200×3800×3200 Machine Weight (approx.) kg 13000 15000
