SUFENG CNC南京速锋数控NMC-80A

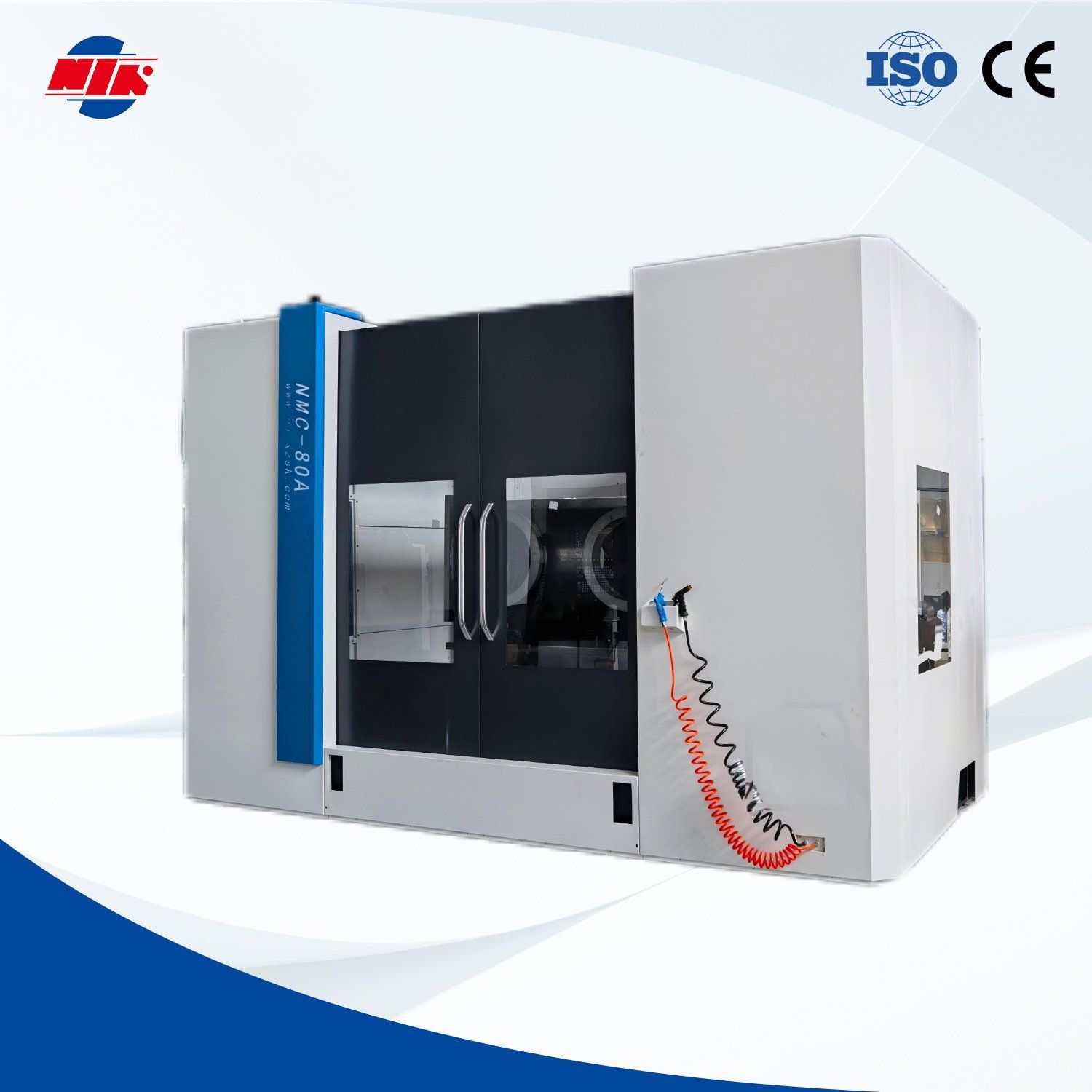

Nmc-80A Positive T-Type Horizontal Machining Centre with Robust Tool for High Precision Metal Cutting Industrial CNC Machine
Product Details
| Customization | Available |
|---|---|
| After-sales Service | Online and Engineers Available to Service |
| Warranty | 1 Year |
Shipping
Shipping Cost: Contact the supplier about freight and estimated delivery time.
Basic Info.
- Model NO.
- NMC-80A
- Application
- Metal
- Process Usage
- Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools
- Movement Method
- Linear Control
- Control Method
- Closed-Loop Control
- Numerical Control
- CNC/MNC
- Processing Precision
- 0.01~0.02(mm)
- Performance Classification
- High-End CNC Machine Tools
- Certification
- GS, CE, RoHS, ISO 9001
- Condition
- New
Applications and machining guidance

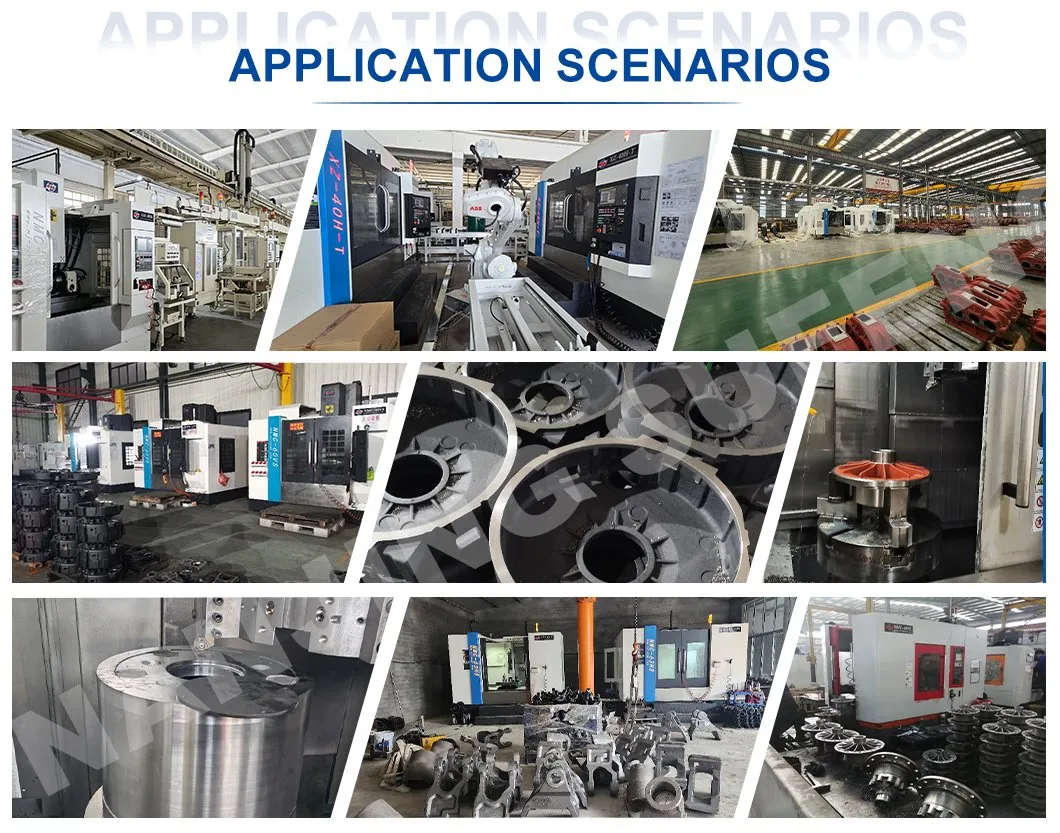

NMC-80A — Designed for multi-face machining of box parts, housings, valve bodies, automotive components and new-energy parts. The horizontal layout supports fewer setups; spindle, magazine, table and accuracy options should be confirmed against the workpiece drawing.
Complete product details

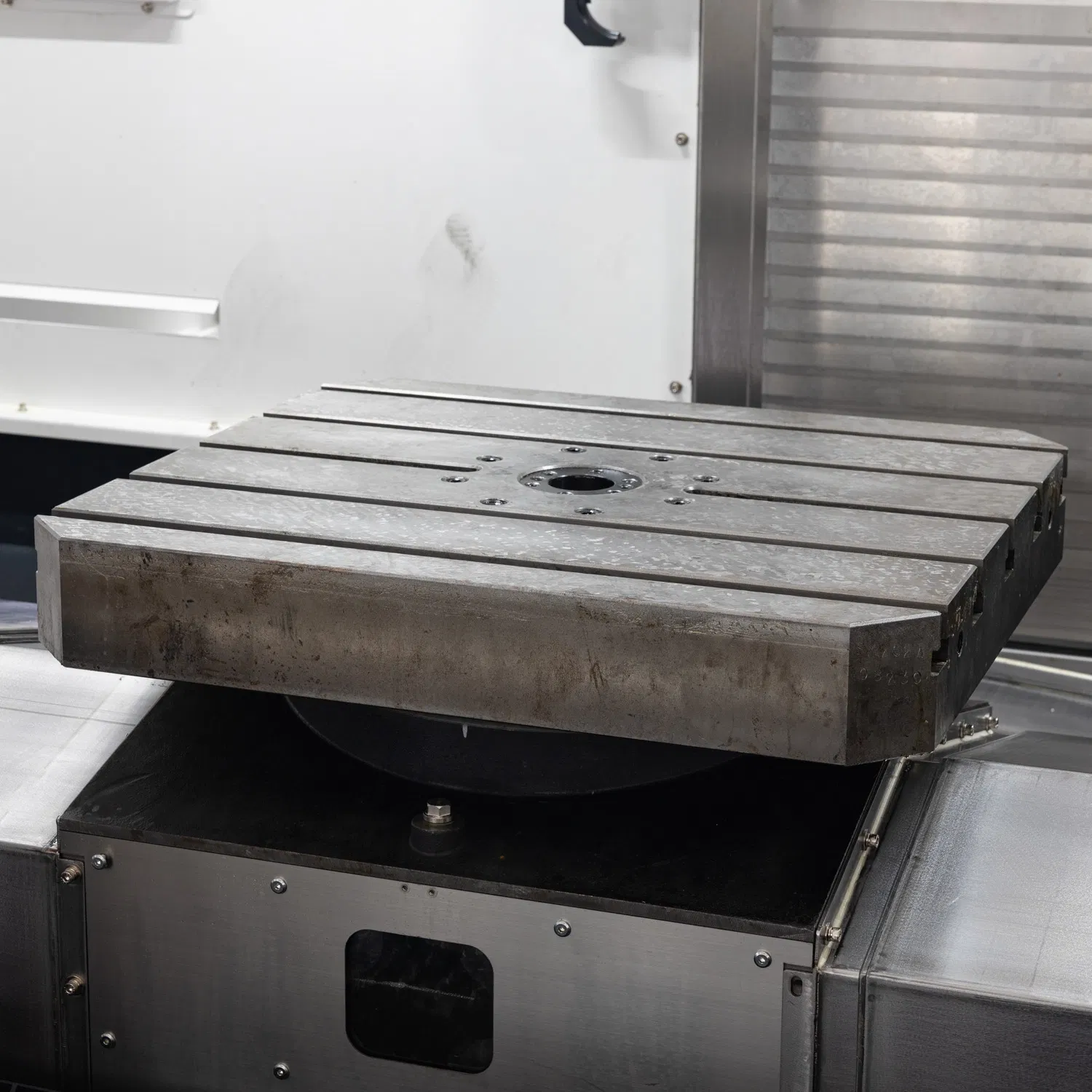

This series of horizontal machining centre is the positive T-shape quasi-speed horizontal machining centre developed by our company with reference to the advanced technology at home and abroad, and combined with more than 30 years of experience in designing horizontal machining centres, and is divided into two types of products: NMH-80A single table and NMH-80A-1 automatic pallet changer. Model NMH-80A single table NMH-80A/1 APC Workbench specification (W×L) mm 800×800 2-800×800 Table exchange exchange time/exchange mode Sec -------- 25 / Servo-driven rotary exchange Worktable indexing number deg STD:1° x 360 equal divisions OPT:0.001° arbitrary (4-axis linkage) Table surface form (number of slots - slot width × spacing) mm 5-22×160 Maximum table load kg 1800 Distance from spindle centre to table surface mm 100-1000 0-900 Distance from spindle front face to table centre mm 180-1080 Maximum rotary diameter of workpiece on table mm Φ1200 X/Y/Z coordinate travel mm 1200/900/1000 X/Y/Z guideway Heavy Duty Linear Rolling Guideway X/Y/Z rapid traverse speed m/min 40/40/40 Maximum rotary speed of rotary table r/min 4 to 6 (evenly loaded) Cutting feed speed m/min 0.005-10 X/Y/Z/turntable axis servo motor torque power Nm kW 38/30/30/126.0/7.0/7.0/3.0 Spindle speed(STD) Spindle speed range: 20 to 6000 (high and low) Wide-area high-torque configuration r/min Main motor power: 18.5/26 kW (S1/ S3-25%) Low spindle torque: 310/525Nm (S1/ S3-15%) Spindle speed(OPT) Spindle speed range: 45 to 8000 High Power Configuration r/min Spindle motor power: 22/35 kW (S1/ S3-25%) Low spindle torque: 140/223 Nm (S1/ S3-25%) Tool magazine capacity/form pcs STD:32 OPT: 40, 60 Tool shank form BT50 Maximum tool weight kg 20kg Maximum tool size (diameter/length) mm Φ115(adjacent space Φ200)/450 Tool change time (tool to tool)/tool change method Sec 5 / Random Rotary table positioning accuracy/repeat positioning accuracy ″ 10″/5″ Number of axes controlled by CNC system, monitor ″ FANUC 0i-MF Plus, 10.4 inch colour LCD Air source pressure MPa. 0.5-0.7 (Flow rate: 800L/min) Power Requirement kVA 60 (three-phase AC 380V±10%, 50Hz±1Hz) Overall dimensions (L×W×H) mm 5500×3500×3400 7300×4000×3400 Machine weight (approx.) kg 15000 18000
Frequently asked questions
How do I confirm whether this machine suits my part?
Send the workpiece drawing, material, dimensions, tolerances, annual volume and target cycle time. Our engineers will check travel, spindle, tool capacity, fixturing and automation needs.
Are customization and OEM/ODM available?
Yes. The available scope can cover process requirements, CNC control, tool magazine, table, fixtures and loading automation.
What delivery and after-sales support is available?
Installation, commissioning, operator training, remote support and spare-parts service are available, subject to the delivery region and project scope.
Ask about this machine
Send your material, workpiece dimensions, tolerance and cycle-time target. Our engineers will help confirm the configuration.
