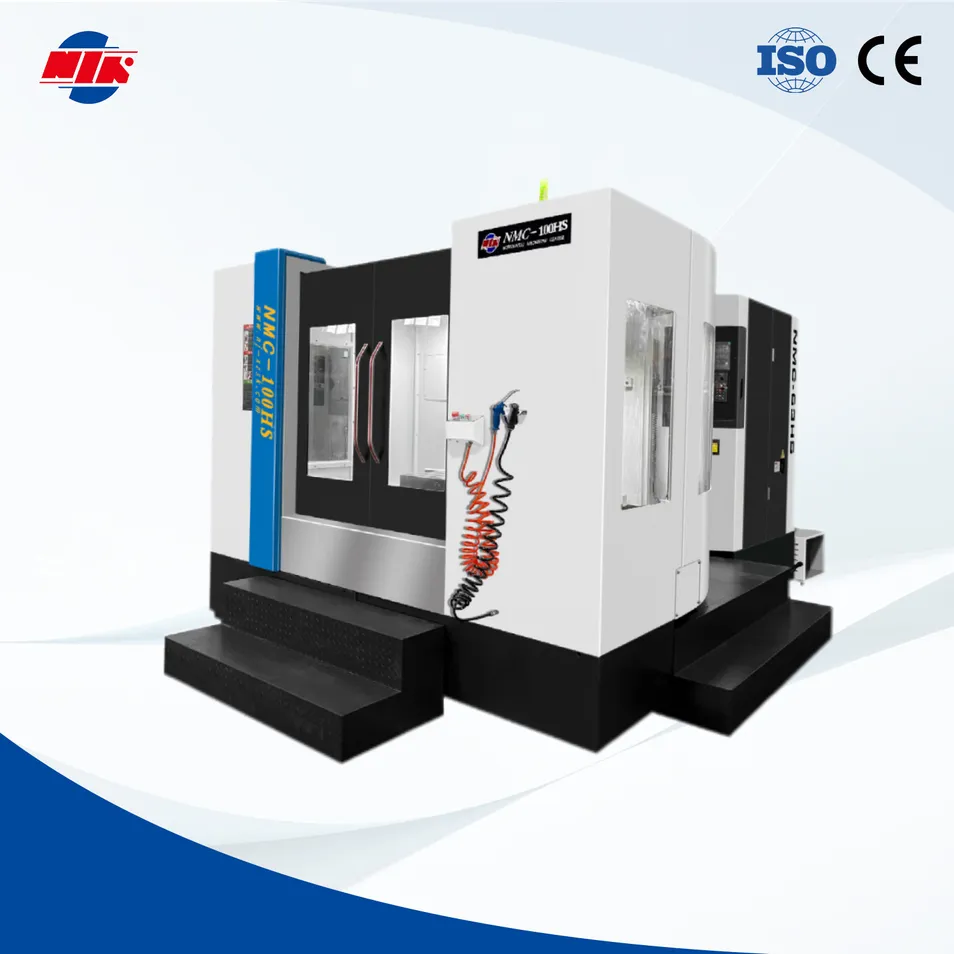

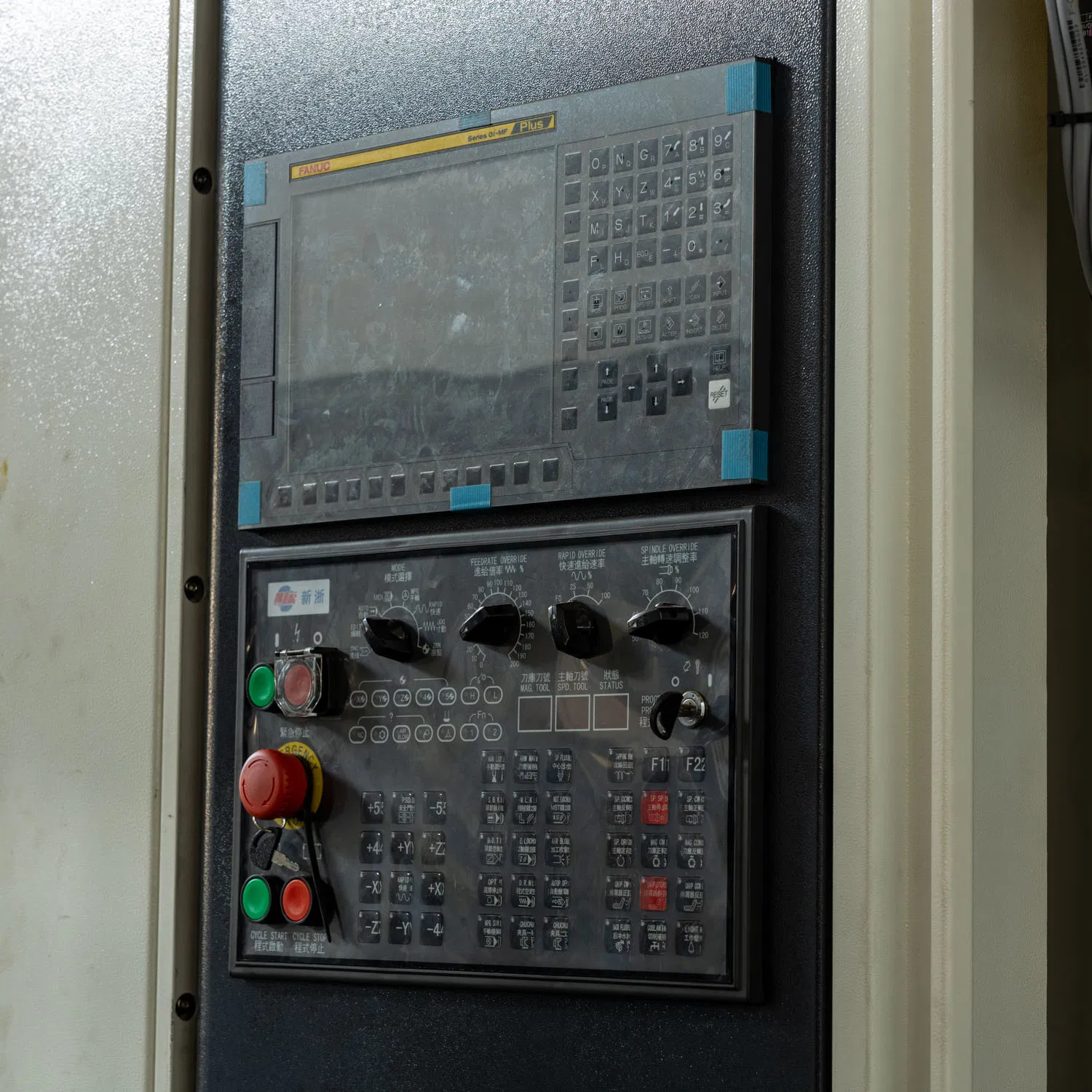

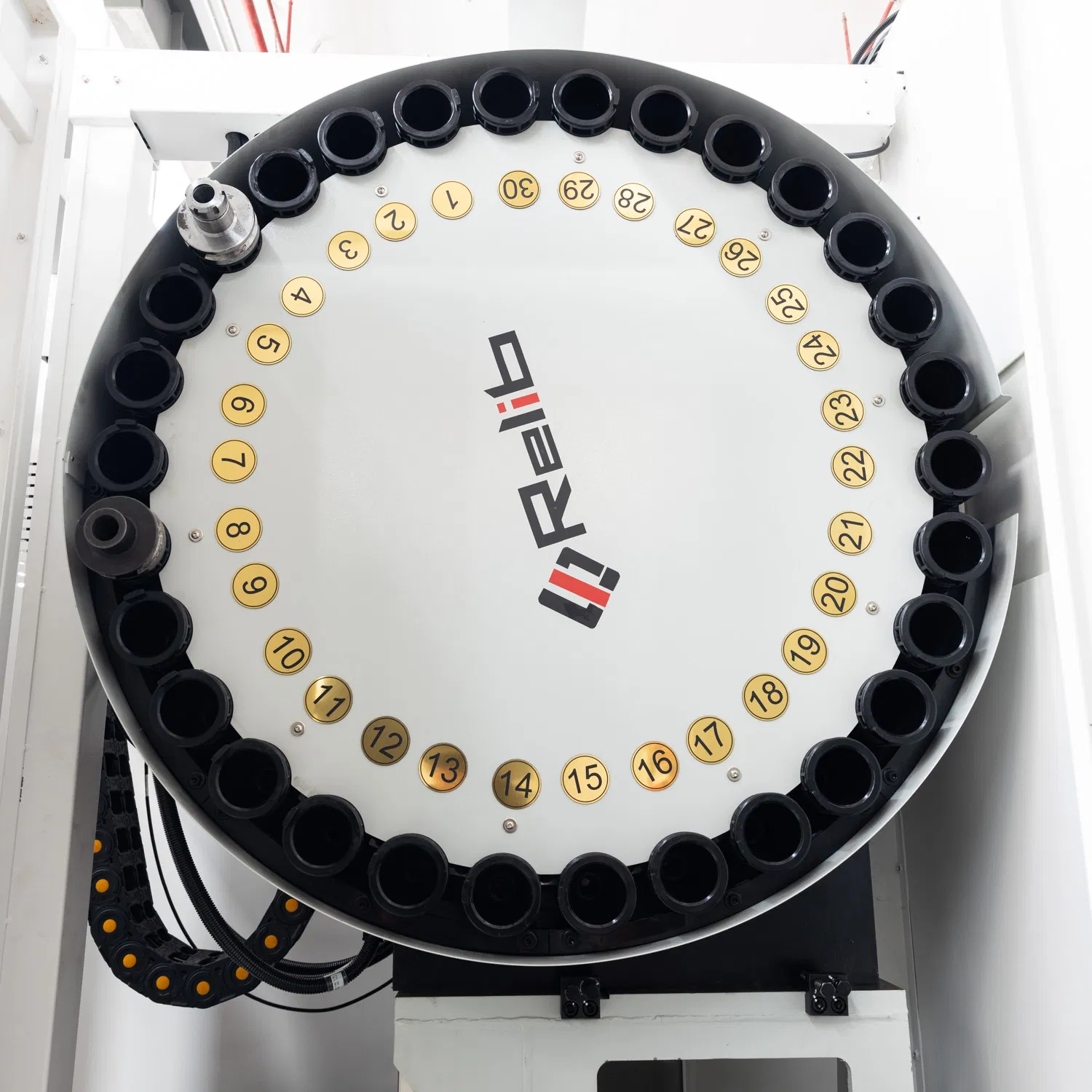

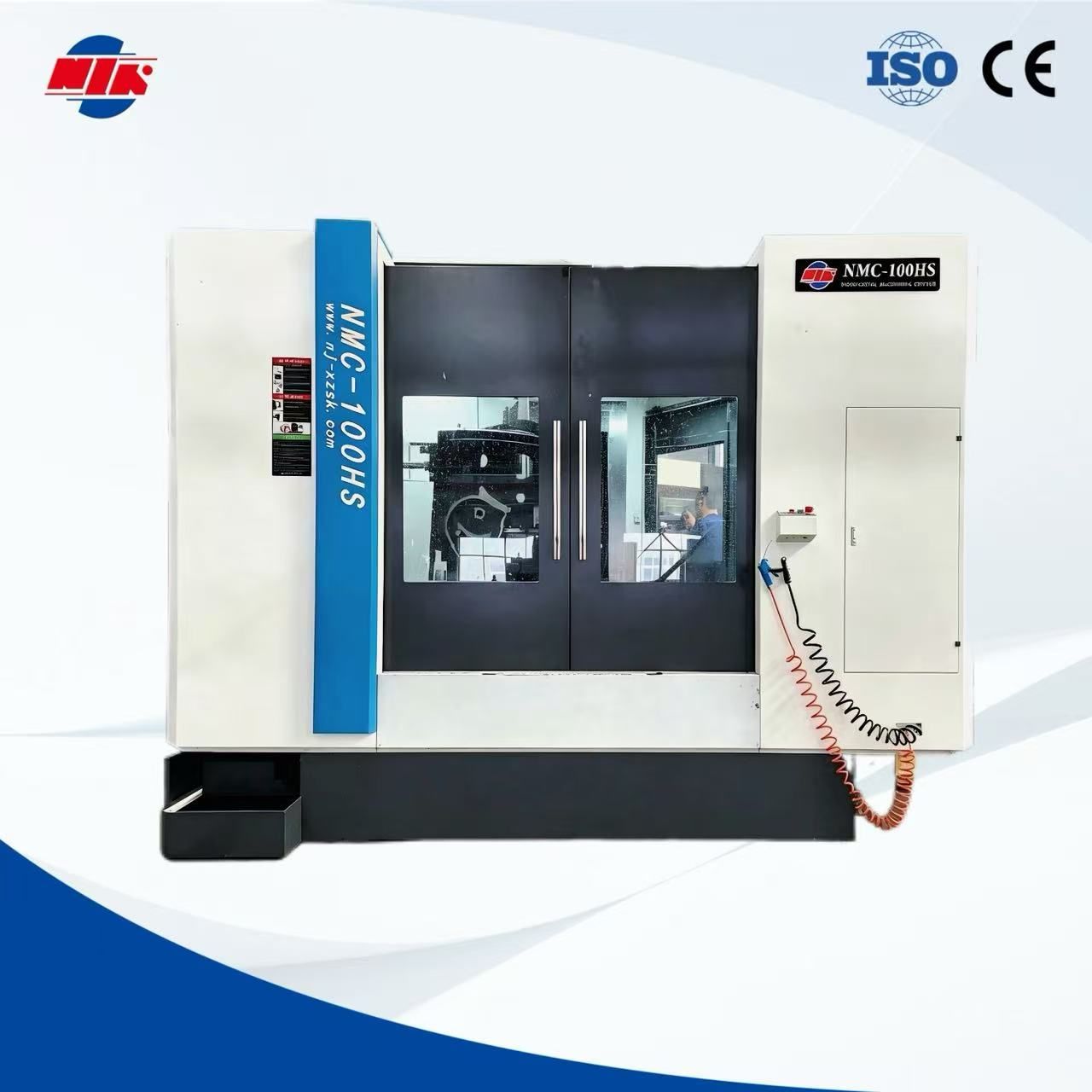

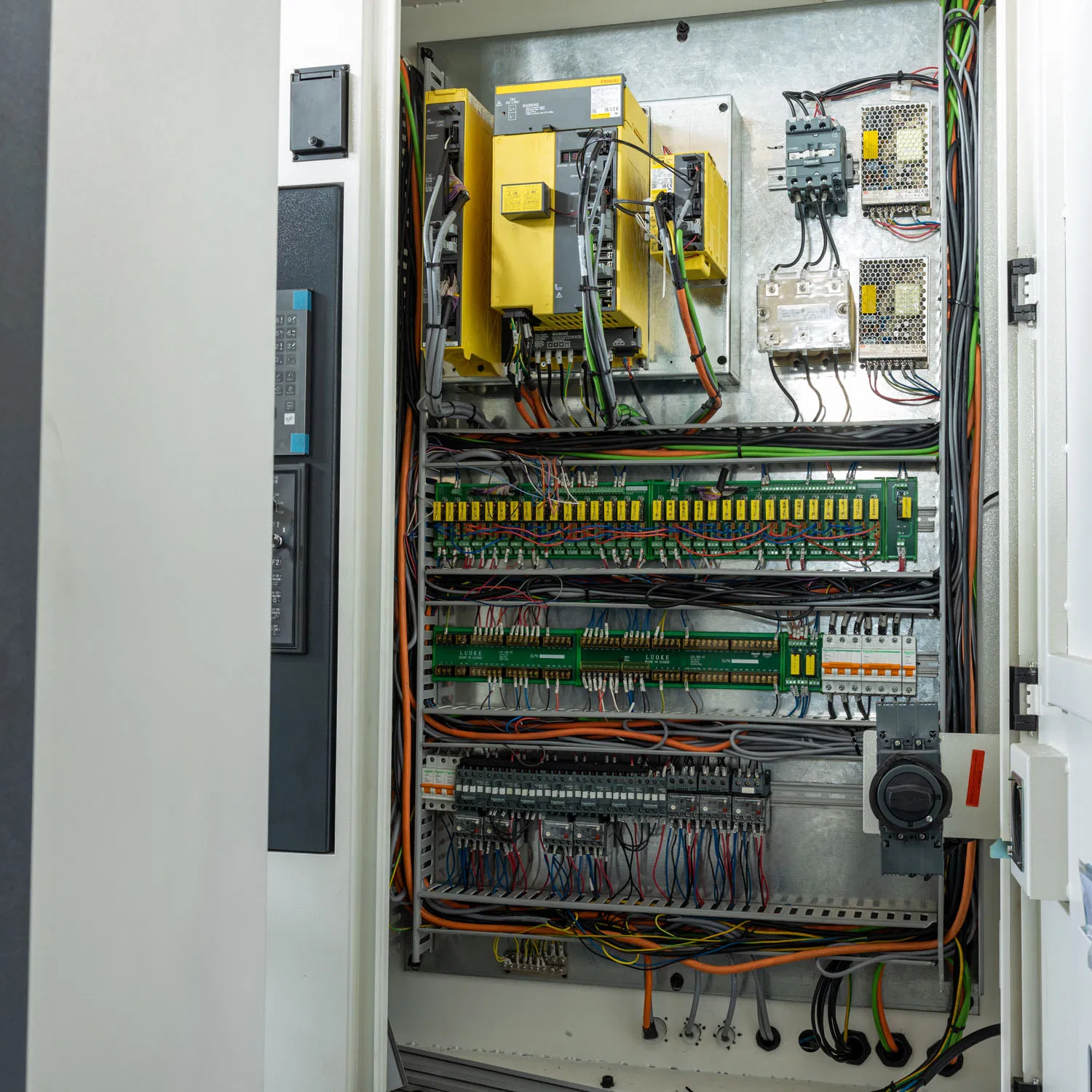

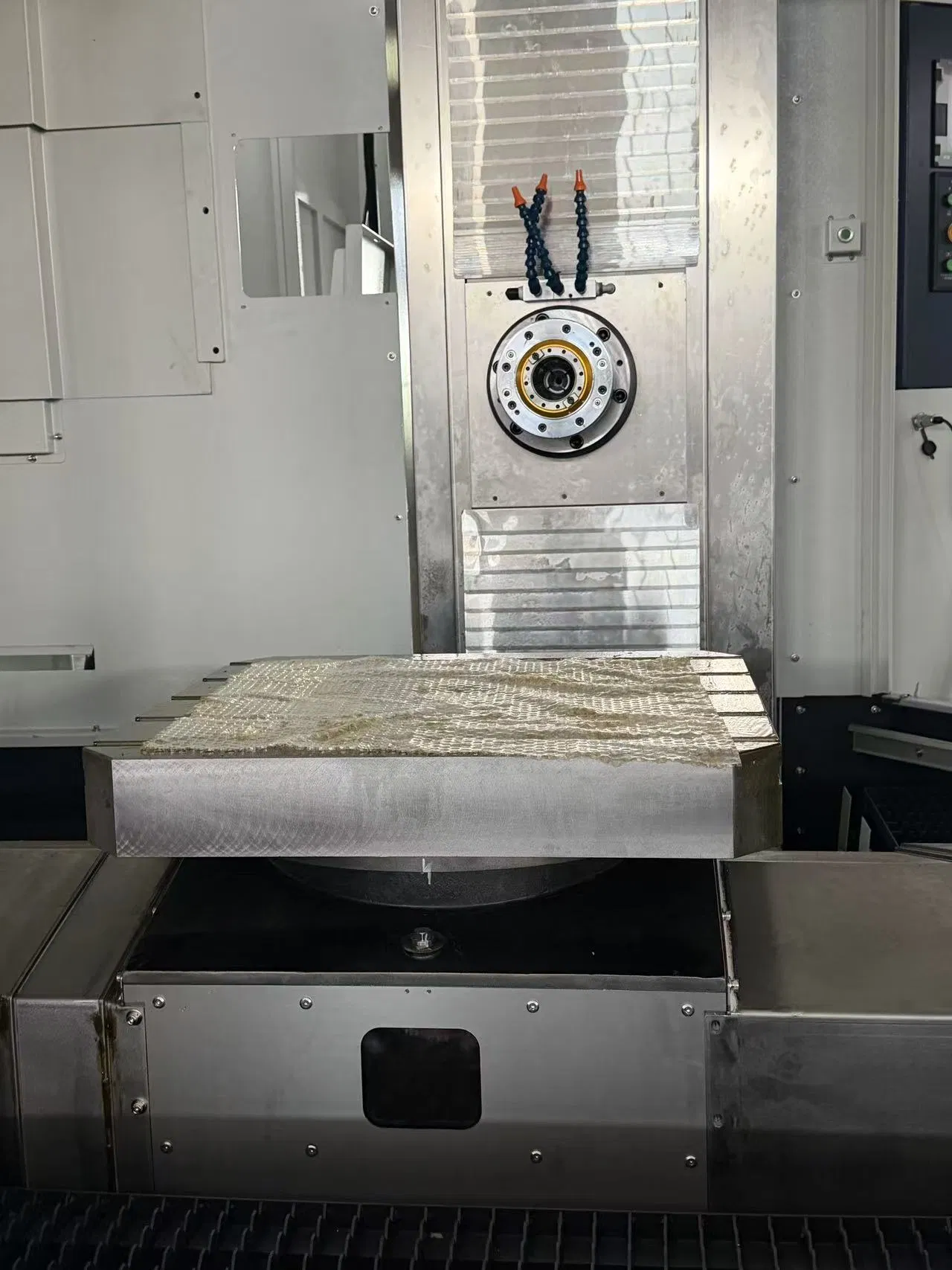

NMC-100HS

The spindle uses a high-torque motor with a wide constant-power range and an integrated spindle unit for heavy cutting. The machine has a modular, closed-box structure and heavy-duty roller linear guideways on the X/Y axes. Specification Unit NMC100HS Single table NMC100HS/1 APC Standard configuration:Indexing turret Optional: CNC rotary table Worktable dimensions (width × length) mm 1000×1000 2-1000×1000 Worktable indexing pitch deg Standard configuration: 1°×360 Optional:0.001° in any direction Maximum worktable load kg 2500 2000 Distance from spindle centre to worktable top surface mm 120-1200 0~1000 Maximum workpiece swing diameter on worktable mm Φ1800 Φ1280 Distance from spindle face to worktable centre mm 200-1200 Worktable surface configuration (number of slots – slot width × pitch) mm 5–22×200 X/Y/Z-axis travel mm 1600/1000/1000 X/Y/Z Guide Type Heavy-duty linear roller guides X/Y/Z Rapid Traverse Speed m/min 18/18/15 Maximum Turntable Rotation Speed r/min 3~5 Cutting Feed Rate m/min 0.005-6 X/Y/Z/Turntable Axis Servo Motor Torque Nm 36/36/36/20 Power kW 3.0/3.0/3.0/2.5 Spindle motor power (S1/S2 – 15 min) kW 15/18.5 Spindle speed range r/min Standard: 30–6000,Optional: 20–4000 Spindle output torque (S1/S2 – 15 min) Nm Standard: 191/315,Optional: 330/408 Tool magazine capacity/type ea Standard: 32, Optional: 40 Optional: 60 Tool holder type BT50 Maximum tool weight kg 20kg Maximum tool dimensions (diameter/length) mm Φ115(AdjacentΦ200)/450 Tool change time (tool-to-tool)/tool change method Sec 5/Random CNC system control, display ″ FANUC 0i-MF Plus, 10.4-inch colour LCD Air supply pressure MPa. 0.5–0.7 (flow rate: 800 L/min) Power requirements kVA 30 (three-phase AC 380 V ±10%, 50 Hz ±1 Hz) Overall dimensions (L×W×H) mm 4850×4280×4100 6800×4600×4100 Machine weight kg 16500 18000
